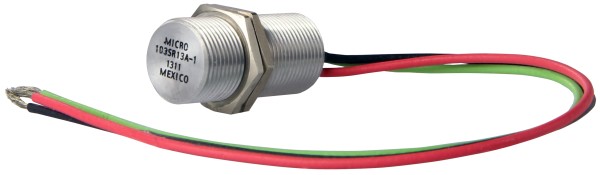

103SR13A-1 by honeywell

103SR13A-1

Honeywell

Honeywell Magnetic Value-added Hall-effect Sensor: 103SR Series,Unipolar Hall-effect Digital Position Sensors, 4.5 to 24 Vdc supply voltage, Sealed, 15/32-32 UNS-2A cylindrical aluminum threaded housing, Digital sinking output, Two hex nuts, 152,4 mm [6 in] 24 gauge stranded lead wires with irradiated polyethylene insulation. ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The Honeywell 103SR13A-1 is a high-quality magnetic value-added Hall-effect sensor designed for precise digital position sensing. With a supply voltage range of 4.5 to 24 Vdc, this sensor offers reliable and accurate performance. Enclosed in a sealed, cylindrical aluminum threaded housing (15/32-32 UNS-2A), it ensures durability and protection from external elements. Featuring a digital sinking output, the 103SR13A-1 provides easy integration into various applications. It comes equipped with two hex nuts for secure installation. The sensor is also equipped with 152.4mm (6 inch) 24 gauge stranded lead wires, insulated with irradiated polyethylene for added safety and reliability. With its excellent engineering and reliable performance, the Honeywell 103SR13A-1 is an ideal choice for applications requiring precise digital position sensing.

Product Highlights:

  • Current sinking ouput
  • Rugged, sealed threaded aluminum housing NEMA 3, 3R, 3S, 4, 12 and 13 requirements
  • 24 gauge, 152,4 mm [6 in] stranded leadwires, color coded and irradiated polyethelene insulated
  • Adjustable mounting

Search Keywords: 103SR13A1

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
103SR13A-1
RoHS:
Yes
HTS:
85365000
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Box
Magnetic Type:
Unipolar
Maximum Output Current:
20 mA
Mounting:
Panel
Minimum Magnetic Sensor Release Point:
200 Gs
Maximum Magnetic Sensor Operating Point:
495 Gs
Output Type:
0.4 V
Output Driver:
NPN
Product Type:
Digital
Dimension:
25.4mm x 12mm dia
Typical Operating Supply Voltage:
4.5 to 24 V
Termination Type:
Wire Leads
Operating Temperature:
-40 to 100 °C

IN STOCK: 0

On Order: 554   can ship 12/18/25
On Order: 500   can ship 1/16/26

Factory Lead-Time 28 Weeks

Price (CAD)

Qty
Unit Price
1
$110.529
5
$75.539
10
$67.975
25
$63.457
50
$59.828
100
$58.894
250 +
$58.588
