1HS6 by honeywell

1HS6

Honeywell

MICRO SWITCH™ Hermetically Sealed Large Basic Switches: HS Series, Single Pole Double Throw (SPDT) 1 A 115 Vac, Metal Enclosure, Integral Lever Actuator with Wobblefram Actuator Seal, Higher Operating Force, Switch will Withstand Temperature of 121 °C [250 °F], Binding Head Screw Termination with Integral Washers, Mounting Holes with Accept Pins or Screws, UL, CSA, Military Part Number MS25011-4 ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

A Snap Action Switch is a type of momentary contact micro switch which operates at a rapid speed as it takes very little force or stimulus to operate. These highly sensitive switches are very often used in moist, dusty, or oily environments, adverse gas or vapour environments, aircraft and helicopters, steam cleaning of food processing machines, among others.

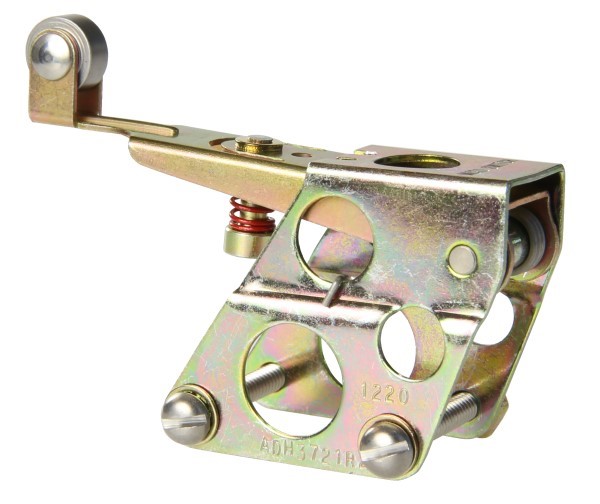

1HS6 Snap Action Switch from Honeywell comes with power load switching capability to 25 A at 28 Vdc. This Roller Lever Switch is specifically designed for applications which require maximum electrical rating and maximum sealing. This Honeywell switch features high temperature tolerance capacity and is insensitive to altitude and pressure changes.

Product Highlights:

  • High temperature construction for use to 149 °C [300 °F]
  • Not sensitive to changes in altitude or pressure
  • Power load switching capability to 25 A at 28 Vdc
  • Broad temperature tolerance range of -55 °C to 125 °C [-67 °F to 250 °F]
  • Choice of actuation
  • Hermetically sealed per MIL-PRF-8805, design symbol 5

Potential Applications:

  • Adverse gas or vapor environments
  • Aircraft and helicopters
  • Steam cleaning of food processing machines
  • Moist, dusty, or oily environments
  • Industrial valve control

Search Keywords: 1HS6

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
1HS6
RoHS:
Yes
HTS:
85365009
COO:
US
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Mounting:
Through Hole
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Actuator Material/Style:
Simulated Roller Lever
Contact Rating @ Voltage:
25@28VDC A
Maximum Movement Differential:
0.51 mm
Operating Force:
7.78 N
Termination Style:
Screw
Dimension:
49.78 x 17.45 x 30.23 mm
Body Orientation:
Straight
IP Rating:
N/A

IN STOCK: 58

Ships today, if you order in

Factory Lead-Time 6 Weeks

Price (CAD)

Qty
Unit Price
1
$687.569
3
$648.015
5 +
$634.863
