BXC3K by honeywell

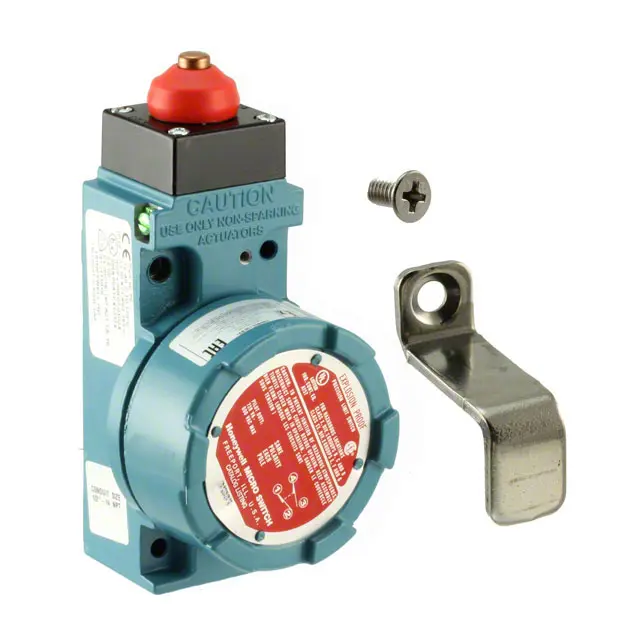

Image is representational - see mfr. specs

BXC3K

Honeywell

Limit Switch - SPDT-1NC/1NO - 10A, 600VAC/250VDC - Pin Plunger Actuator - 0.5-14 NPT Conduit - Screw Mount. ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The BXC3K from Honeywell is screw mount single pole double throw SPDT limit switch with 1NC and 1NO contact configurations. This limit switch has pin plunger actuator, 10A 600VAC/250VDC ratings. This is explosion proof limit switch designed specifically for use in hazardous location applications. The enclosure is sealed for protection against water, corrosion, dust and oil. Dimensions of this switch are: 76.2 mm L x 72.9 mm D x 156.62 mm H. Operating temperature range is from -40°C to 70°C.

Product Highlights:

  • UL, CSA and European approvals
  • Sealing - applicable portions of IP67 and NEMA 1, 3, 4, 6, 7, 9, and 13
  • Diverse conduit selection for wide range of applications
  • Compatible with LSX
  • Tracking interchangeability with MICRO SWITCH ML-E1 and HDLS
  • Variety of heads and non-sparking actuators
  • 10 A continuous carry electrical rating
  • Choice of silver or gold contacts
  • Internal grounding screw

Potential Applications:

  • Control valves and actuators
  • Offshore drilling
  • Grain elevators
  • Petrochemical plants
  • Chemical plants
  • Waste treatment
  • Paint booths
  • Mining conveyors
  • Pulp and paper coating
  • Hazardous waste handling

Search Keywords: BXC3K

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
BXC3K
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536500000
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
N/A
Actuator Style:
Top Pin Plunger
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Operating Force:
17.8 N
Dimension:
N/A
Maximum Current Rating:
10@24VDC A
Terminal Type:
Conduit
NEMA Standard as Enclosure Rating:
1, 3, 4, 6, 13
Body Orientation:
Straight

IN STOCK: 29

Can Ship immediately

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
1
$959.24
3
$954.45
5 +
$941.89
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
