HDRA-E100MA1+ by htk honda

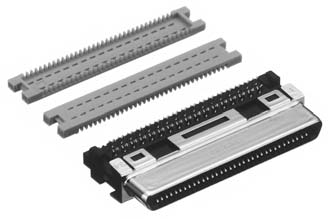

Image is representational - see mfr. specs

HDRA-E100MA1+

HTK HONDA

Conn SCSI M 100 POS 0.8mm IDT RA Cable Mount 100 Terminal 1 Port ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The HDRA-E100MA1+ is an IDC (Insulation Displacement Connector) type male connector for cable applications, part of the HDRA series designed for high-speed signal interfaces such as SCSI-III, VHDCI, and PCI. It features 100 contacts with 0.8 mm pitch spacing and is compatible with AWG#30 (7/0.1) cable with a diameter of 0.58 mm, utilizing one-side IDC termination method. The connector conforms to ANSI/SFF8441 standards and incorporates high-performance EMI/ESD-shielded structure with a low-profile design and sequence structure for reliable signal transmission. It is rated for 30 V AC (r.m.s.) and 0.3 A per contact, with contact resistance of 100 milliohms or less when combined with MA1 and W1LFDT connectors. Common applications include server, router, notebook personal computers, and their peripheral equipment, as well as mobile equipment requiring robust, high-density interconnection.

Search Keywords: HDRAE100MA1

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
HTK HONDA
Part No:
HDRA-E100MA1+
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536698000
COO:
JP
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
SCSI
Body Orientation:
Right Angle
Mounting:
Cable Mount
Gender:
M
Termination Method:
IDT
Pitch:
0.8 mm
Number of Contacts:
100
Maximum Voltage Rating:
30 VAC
Maximum Current Rating:
0.3 A
Operating Temperature:
N/A

IN STOCK: 13

Can Ship immediately

Minimum Order Quantity: 3

Factory Lead-Time 28 Weeks

Price (USD)

Qty
Unit Price
3
$63.70
13
$56.30
27
$52.07
50 +
$46.89
