024658-0000MF by itt cannon

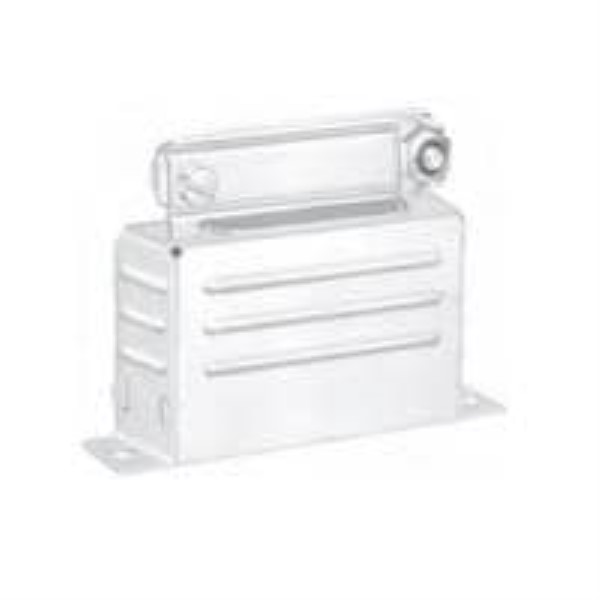

Image is representational - see mfr. specs

024658-0000MF

ITT CANNON

Micro-D Backshell 180° A Shell Size Chromate Over Cadmium Carbon Steel ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 024658-0000MF is a spring latch plate assembly designed for D-Subminiature connectors, providing positive mating and locking functionality in high-vibration environments. The assembly features stainless steel guide pins and steel plate hardware with a chromate-over-zinc finish, ensuring corrosion resistance and durability. Available in multiple shell sizes (DE, DA, DB, DC, DD) with corresponding dimensional specifications ranging from 30.56 mm to 88.11 mm in length, the component integrates seamlessly with Cannon D-Subminiature backshells. This latch plate assembly is ideal for Ethernet applications and other demanding interconnect scenarios where reliable mechanical engagement and environmental protection are essential.

Search Keywords: 0246580000MF

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ITT CANNON
Part No:
024658-0000MF
Alias/AKA:
M85049/48-1-2F
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
7326908688
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Backshells
Shell Size:
A
Angular Function:
180 °
Connector Type:
Connector D-Subminiature
Body Material:
Carbon Steel
Dimension:
38.89 x 31.75 x 12.48 mm

IN STOCK: 146

Ships today, if you order in

Factory Lead-Time 19 Weeks

Price (USD)

Qty
Unit Price
1
$24.44
5
$21.25
10
$21.02
25
$20.47
50
$20.16
100
$20.11
250 +
$20.05
Log in for special pricing Click for Quote Price Match Request
