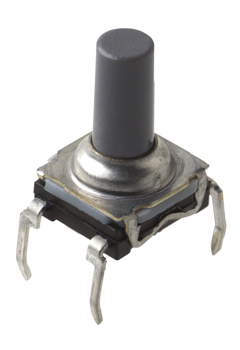

KSA1M511LFT by littelfuse/c-k
Image is representational - see manufacturer specifications
Littelfuse/C&K Authorized Distributor

KSA1M511LFT

Sealed Tact Switch ...

View Datasheet Ask the Datasheet
RoHS Compliant
Bulk Packaging
Accessories
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

KSA1M511LFT is a sealed tactile switch from the KSA & KSL Series designed for automatic or manual insertion in industrial, automotive, and telecommunication applications. The switch features a single-pole single-throw (SPST) normally open contact arrangement with double overmolding on terminals and IP60 sealing protection. It delivers an actuation force of 5.0 N (500 grams) with a travel to make of 0.7 ± 0.2 mm and is rated for 100,000 operating cycles. The switch is available with silver or gold contacts, supports PC pins with optional ground pin, and is RoHS compliant. Its robust sealed design and cambered terminals for self-retention make it ideal for applications requiring reliable switching in harsh environments.

Search Keywords: KSA1M511LFT

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Littelfuse/C&K
Part No:
KSA1M511LFT
Alias/AKA:
Y33A51116FPLFT
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509040
COO:
FR
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Bulk
Dimension:
7.4 x 9 x 4.7 mm
Mounting:
PCB Through Hole
Pole Throw Configuration:
SPST
Switch Configuration:
N.O.
Actuator Style:
Round Button
Operating Force:
7 N
Contact Rating @ Voltage:
1 A
Illumination Type:
N/R
Body Orientation:
Straight
Termination Style:
PC Pins
Seal Location:
N/A
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 3,822

Ships today, if you order in

Minimum Order Quantity: 300

Price (USD)

Qty
Unit Price
300
$0.5883
1,000
$0.5358
2,500
$0.5033
5,000
$0.4602
7,500
$0.4538
10,000
$0.4339
15,000 +
$0.4276
