KSA1M511LFTR by littelfuse / c-k

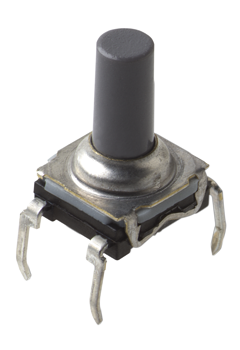

Image is representational - see manufacturer specifications
Littelfuse / C&K Authorized Distributor

KSA1M511LFTR

Switch Tactile N.O. SPST Round Button PC Pins 0.05A 32VDC 1VA 100000Cycles 7N Thru-Hole Automotive Bulk ...

View Datasheet Ask the Datasheet
RoHS Compliant
Bulk Packaging
Accessories
Certificate of Compliance

DESCRIPTION

KSA1M511LFTR is a sealed tactile switch from the KSA & KSL Series designed for automatic or manual insertion in automotive, industrial, and telecommunication applications. The switch features a 5 N (500 grams) actuation force with 0.7 ± 0.2 mm travel to make, rated for 100,000 operations, and incorporates double overmolding on terminals with cambered design for self-retention. It provides SPST normally-open contact arrangement with IP60 sealing, silver contacts rated at 1 VA maximum power and 32 VDC maximum voltage, and PC pins with optional ground terminal. The RoHS-compliant design with top or side actuation capability and large choice of interchangeable caps makes it suitable for applications requiring reliable, sealed switching in harsh environments.

Search Keywords: KSA1M511LFTR

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Littelfuse / C&K
Part No:
KSA1M511LFTR
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509040
COO:
FR
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
5000
Package Type:
Bulk
Dimension:
7.4 x 9 x 4.7 mm
Mounting:
PCB Through Hole
Pole Throw Configuration:
SPST
Switch Configuration:
N.O.
Actuator Style:
Round Button
Operating Force:
7 N
Contact Rating @ Voltage:
1 A
Illumination Type:
N/R
Body Orientation:
Straight
Termination Style:
PC Pins
Seal Location:
N/A

IN STOCK: 6,920

Ships today, if you order in

MOQ for In Stock Qty: 200

MOQ for out of Stock Qty: 200

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
200
$0.9717
500
$0.9693
1,000
$0.9669
2,500
$0.9645
5,000
$0.5106
7,500
$0.3593
10,000 +
$0.3522
