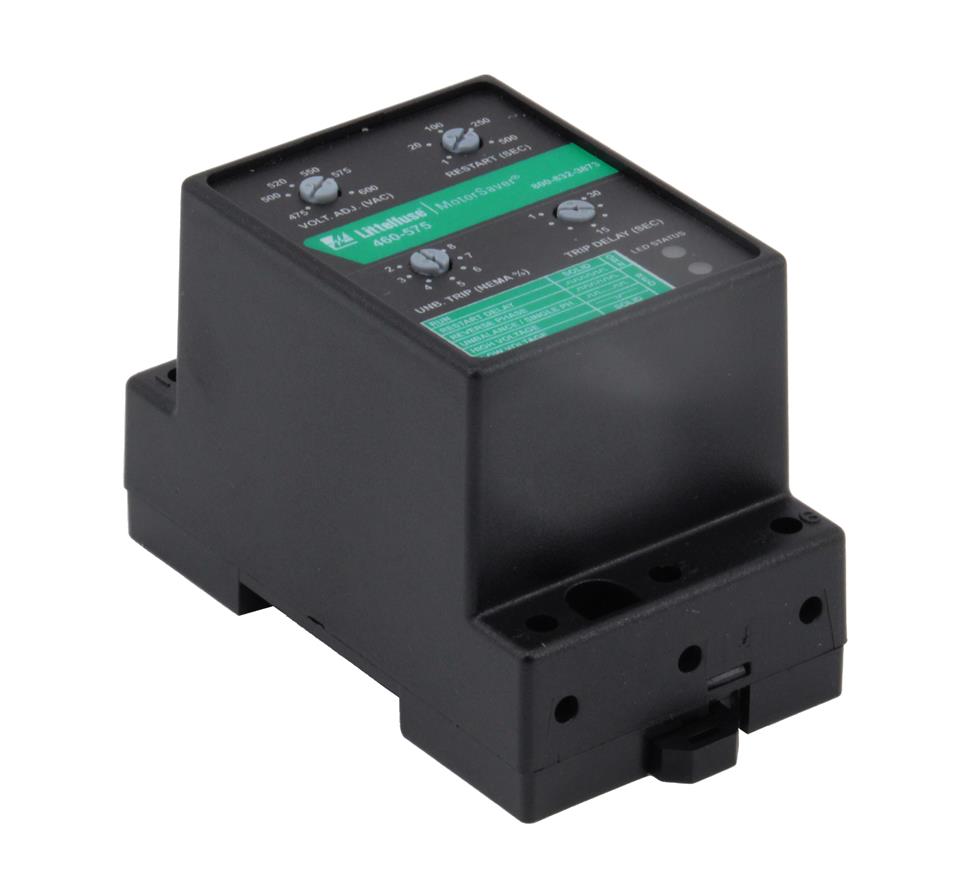

460-575

3-Phase Volt Mon/ 475-600V/ Ad ...

RoHS Compliant

DESCRIPTION

The 460 is a 3-phase voltage monitor that protects 190-480VAC or 475-600V, 50/60Hz motors regardless of size. The product provides a user selectable nominal voltage setpoint and the voltage monitor automatically senses line voltage. This unique microcontroller-based voltage and phase-sensing device constantly monitors the 3-phase voltages to detect harmful power line conditions such as low, high, and unbalanced voltage, loss of any phase, and phase reversal. When a harmful condition is detected, the 460 output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to an acceptable level for a specified amount of time (restart delay). The trip and restart delays prevent nuisance tripping due to rapidly fluctuating power line conditions. All 460 models feature adjustable 1-30 second trip delay, 1-500 second restart delay, 2-8% voltage unbalance trip point, and one form C contact except where noted.

Product Highlights:

Potential Applications:

Search Keywords: 460575

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Littelfuse Industrial Products

Part No:

460-575

RoHS:

Yes

HTS:

8536100040

COO:

ECCN:

EAR99
