Image is representational - see manufacturer specifications
LPF-25-24
AC/DC LED Power Supply - Const Curr/Volt - 25.2W - Fixed:24 Vdc @ 1 -050mA - Dim: No. ...
RoHS Compliant
Certificate of Compliance
DESCRIPTION
The LPF-25-24 is an AC to DC power supply from Mean-Well USA, Inc. It has a voltage of 24 V and maximum output power of 25.2 W. This part's single output can handle a current up to 1.05 A. This part has a minimum operating temperature of -40 °C and a maximum of 70 °C.
Search Keywords: LPF2524
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
MEAN WELL
Part No:
LPF-25-24
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:
1
Input/Output Type:
AC/DC
Style:
Enclosed
Type:
Constant Current/Voltage
Output Type:
Fixed
Dimming:
No
Maximum Output Power:
25 W
Output Voltage Range:
24.0 Vdc (Nom)
Maximum Output Current:
1,050 mA (1.05 A)
Minimum AC Input Voltage:
90
Maximum AC Input Voltage:
305
Minimum DC Input Voltage:
127
Maximum DC Input Voltage:
431
Termination Style:
Wire Leads
Input Connector Type:
Stripped and Tinned
Output Connector Type:
Stripped and Tinned
Operating Temperature:
-40 to 70 °C
Safety Agency Approvals:
CB, CCC, CE, cRUus, ENEC 17, PSE
NEC Class:
2
IEC Class:
II
SELV:
Yes
LPS:
No
Warranty:
5 Years
Family:
LPF-25
IN STOCK: 453
Can Ship immediately
Factory Lead-Time 19 Weeks
Price (USD)
Qty
Unit Price
1
$22.66
5
$21.63
10
$20.70
20
+
$20.09
Tools/3D Models
Datasheet
Learn more about MEAN WELL LED Driver
CUSTOMERS
ALSO BOUGHT
421502
Type J/K, Dual Input Thermometer With Alarms
LPF-40-24
AC-DC Single output LED driver Mix mode (CV+CC) - Output 24Vdc at 1.67A - cable output - N...
HLG-320H-24
AC/DC LED Pwr Sply - Const Curr/Volt - 320.16W - Fixd: 24 Vdc @ 13,340mA - Dim: No

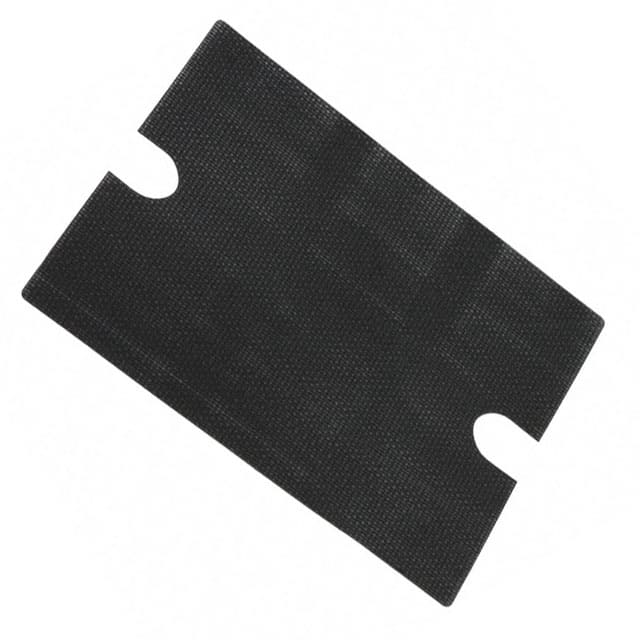

HSP-2
