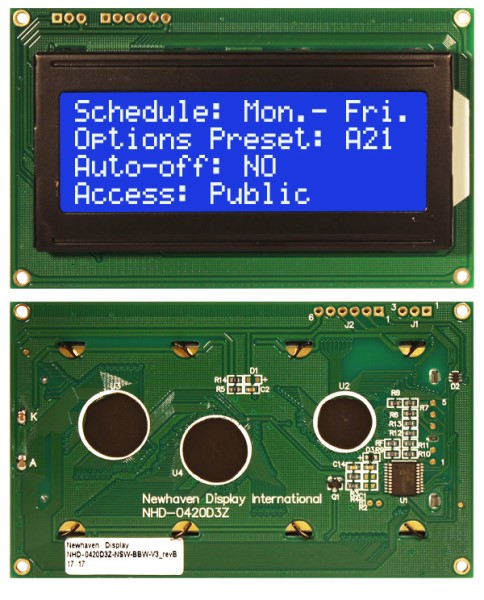

NHD-0420D3Z-NSW-BBW-V3
NHD-0420D3Z-NSW-BBW-V3

In Stock: 201

Minimum Order: 1

VIEW PRODUCT
NHD-0420D3Z-NSW-BBW by newhaven display
Image is representational - see manufacturer specifications
Newhaven Display Authorized Distributor

NHD-0420D3Z-NSW-BBW

Character Display STN Transmissive 20Char x 4Line 14-Pin

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued
Certificate of Compliance

DESCRIPTION

Character Display STN Transmissive 20Char x 4Line 14-Pin

Search Keywords: NHD0420D3ZNSWBBW

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Newhaven Display
Part No:
NHD-0420D3Z-NSW-BBW
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8531200020
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Display Format:
20 x 4
Display Type:
STN-Blue (-)
Display Mode:
Transmissive (-)
Text Color:
White
Background Color:
Blue
Backlight:
LED - White
Active Area:
70.4 x 20.8 mm
Character Size:
4.75 x 2.95 mm
Dimension:
98 x 60 x 13.5 mm
Interface:
I2C/SPI/TTL-RS232
Supply Voltage:
5 V
Operating Temperature:
-20 to +70 °C
Life Cycle:
Discontinued
   This product is not in stock and cannot be back-ordered
  Possible Replacement options available.  See Alternatives
