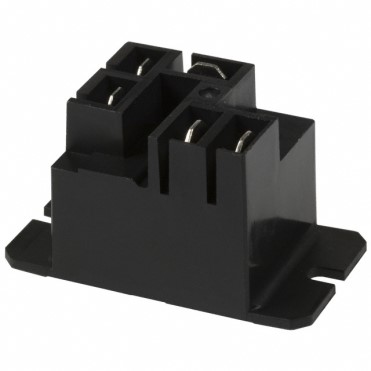

G7L-1A-TUB-J-CB-AC100/120 by omron electronics

G7L-1A-TUB-J-CB-AC100/120

Omron Electronics

General Purpose Relay SPST-NO (1 Form A) 120VAC Coil Chassis Mount ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The G7L-1A-TUB-J-CB-AC100/120 is a Power Relay with AC coil. This G7L-series relay has 1NO (SPST) Ag alloy contact with test button. High-capacity, High-dielectric-strength relay compatible with momentary voltage drops. 0.25 inch quick-connect terminals and upper bracket mounting. UL Class B construction standard. Safety design with contact gap of 3mm. Wide-range AC-activated coil Miniature size for maximum switching power, particularly for inductive loads Flame-resistant materials (UL94V-0 qualifying) used for all insulation material No contact chattering for momentary voltage drops up to 50% of rated voltage -25 to 60°C Operating temperature range Applications Power Management, HVAC, Lighting, Motor Drive & Control

Search Keywords: G7L1ATUBJCBAC100120

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Omron Electronics
Part No:
G7L-1A-TUB-J-CB-AC100/120
RoHS:
Yes
HTS:
8536490075
COO:
ID
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Relay Construction:
Non-Latching
AC Coil Voltage:
100,120 V
DC Coil Voltage:
N/A
Contact Arrangement:
SPST-NO
Maximum Current Rating:
30 A
Mounting:
Bracket Mount
Termination Style:
0.25Quick Connect
Push to Test Button:
Yes
Led Indicator:
No
Operating Temperature:
-20 to 60 °C

IN STOCK: 21,332

Can Ship immediately

Minimum Order: 20

Multiple: 20

Factory Lead-Time 4 Weeks

Price (CAD)

Qty
Unit Price
20
$12.219
40
$12.082
60
$12.021
100
$11.959
260
$11.898
500
$11.852
1,000 +
$11.791
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
