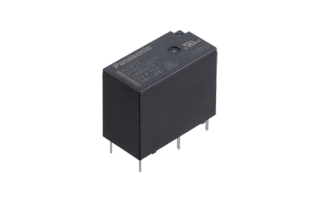

ALQ105 by panasonic electronic components

ALQ105

Panasonic Electronic Components

Power Relay 5VDC 5(NO)/1(NC)DC/10(NO)/3(NC)AAC SPDT(20x10x16)mm THT ...

Datasheet
RoHS Compliant
BOX Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PANASONIC EW/AROMAT ALQ105 is a highly reliable power relay designed for various electrical applications. With a compact size of 20x10x16mm, this relay offers a space-saving solution for your circuit board. It operates with a 5VDC coil voltage and features an impressive 5 normally open (NO) and 1 normally closed (NC) contacts for DC circuits, as well as 10 NO and 3 NC contacts for AC circuits. The ALQ105 is a single-pole, double-throw (SPDT) relay that guarantees reliable switching performance. Built with through-hole technology (THT), this power relay ensures easy installation and robust connections. Trust PANASONIC EW/AROMAT's ALQ105 to deliver efficient and durable relay functionality for your electrical projects.

Search Keywords: ALQ105

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
ALQ105
RoHS:
Yes
HTS:
8536410050
COO:
TH
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
BOX
Relay Construction:
Non-Latching10725
AC Coil Voltage:
N/A
DC Coil Voltage:
5 V
Contact Arrangement:
SPDT10703
Maximum Current Rating:
10(NO)/3(NC) A
Mounting:
Through Hole10716
Termination Style:
PC Pin10727
Push to Test Button:
No10724
Led Indicator:
No10708
Operating Temperature:
-40 to 85 °C
Coil Resistance:
62.5 Ohm

IN STOCK: 0

On Order: 5,000   can ship 12/17/25

Minimum Order: 100

Multiple: 100

Factory Lead-Time 21 Weeks

Price (CAD)

Qty
Unit Price
100
$1.598
300
$1.496
500
$1.458
1,000
$1.400
2,500
$1.393
5,000
$1.292
7,500
$1.285
10,000 +
$1.279
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
Older Equivalent
JQ1-5V-F
JQ1-5V-F
VIEW PRODUCT
