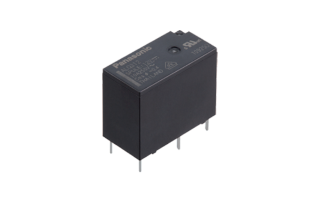

ALQ124 by panasonic electronic components

ALQ124

Panasonic Electronic Components

Power Relay 24VDC 5(NO)/1(NC)DC/10(NO)/3(NC)AAC SPDT(20x10x16)mm THT ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PANASONIC EW/AROMAT part ALQ124 is a reliable and high-performance power relay suitable for various applications. This compact relay operates at 24VDC and offers a versatile 5 normally open (NO) contacts, 1 normally closed (NC) contact for direct current (DC) loads, and 10 normally open (NO) contacts, 3 normally closed (NC) contacts for alternating current (AC) loads. With its single pole double throw (SPDT) configuration, this relay can handle multiple load types and offers flexibility in controlling electrical circuits. Designed for through-hole technology (THT) mounting, the compact dimensions of 20x10x16mm make it ideal for space-constrained installations.Engineered by Panasonic, a renowned brand known for its superior quality and durability, this power relay ensures robust performance, long life, and enhanced safety. It is a trusted solution for various industrial, automotive, and consumer electronics applications where dependable and efficient power control is required.Choose the PANASONIC EW/AROMAT part ALQ124 for your projects, and experience reliable and efficient power relay solutions from a trusted industry leader.

Search Keywords: ALQ124

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
ALQ124
RoHS:
Yes
HTS:
8536410050
COO:
TH
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Relay Construction:
Non-Latching10725
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
SPDT10703
Maximum Current Rating:
10(NO)/3(NC) A
Mounting:
Through Hole10716
Termination Style:
PC Pin10727
Push to Test Button:
No10724
Led Indicator:
No10708
Operating Temperature:
-40 to 85 °C
Coil Resistance:
1.44 KOhm
  Possible Replacement options available.  See Alternatives

IN STOCK: 26,400

Ships today, if you order in

Minimum Order: 100

Multiple: 100

Factory Lead-Time 21 Weeks

Price (CAD)

Qty
Unit Price
100
$0.949
300
$0.934
500
$0.885
1,000
$0.882
2,500
$0.877
5,000
$0.873
7,500
$0.868
10,000 +
$0.864
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
Older Equivalent
JS1-24V-F
JS1-24V-F
VIEW PRODUCT
