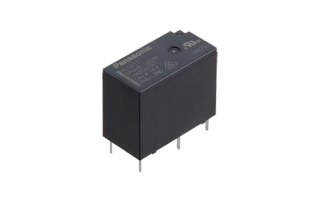

ALQ124
ALQ124

In Stock: 19,168

Minimum Order: 100

VIEW PRODUCT

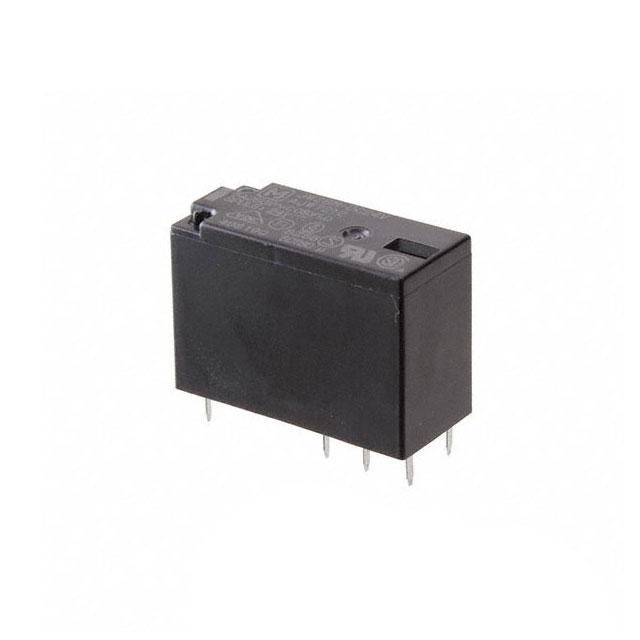

JS1-24V-F by panasonic electronic components
Image is representational - see manufacturer specifications
Panasonic Electronic Components Authorized Distributor

JS1-24V-F

Power Relay 24VDC 5DC/10AAC SPDT(22x16x16.4)mm THT ...

View Datasheet Ask the Datasheet
RoHS Compliant
BOX Packaging
Accessories
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

The PANASONIC EW/AROMAT part JS1-24V-F is a compact and reliable power relay designed for a wide range of applications. With a voltage rating of 24VDC, it is capable of handling up to 5DC/10AAC of power. The relay features a single-pole double-throw (SPDT) configuration and is constructed using through-hole technology (THT) for easy installation. Measuring 22x16x16.4mm in size, it is compact yet durable, making it suitable for various industrial and commercial environments. Trust in the high-quality performance of the PANASONIC EW/AROMAT JS1-24V-F power relay for your electrical switching needs.

Search Keywords: JS124VF

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
JS1-24V-F
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
TH
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
100
Package Type:
BOX
Relay Construction:
Non-Latching10725
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
SPDT10703
Maximum Current Rating:
10
Mounting:
Through Hole10716
Termination Style:
PC Pin10727
Push to Test Button:
No10724
Led Indicator:
No10708
Operating Temperature:
-40 to 70 °C
Coil Resistance:
1.6 KOhm
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 48,726

Can Ship immediately

Minimum Order Quantity: 100

Multiple: 100

Price (USD)

Qty
Unit Price
100
$1.64
300
$1.21
500
$0.98
1,000
$0.92
2,500 +
$0.85
