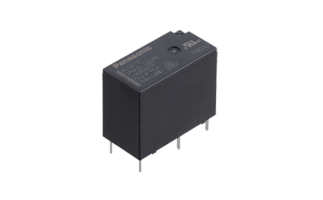

ALQ318 by panasonic electronic components
Image is representational - see mfr. specs

ALQ318

Panasonic Electronic Components

Power Relay 18VDC 10(NO)/3(NC)A SPST-NO(20mm 10mm 16mm) THT ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

ALQ318 is a compact sealed power relay featuring 1 Form A contact arrangement designed for 18 V DC coil operation. The relay measures 10 mm (W) × 20 mm (L) × 16 mm (H) and delivers a rated operating current of 11.1 mA with a coil resistance of 1,620 O at 20°C. It provides a maximum switching capacity of 10 A at 125 V AC and 5 A at 30 V DC, with contact resistance not exceeding 100 mO. The relay features AgNi-type contacts, operates with a maximum switching power of 1,250 VA and 150 W, and maintains a dielectric strength of 4,000 Vrms between contact and coil. With a surge withstand voltage of 8,000 V and mechanical life exceeding 105 operations, the ALQ318 is well-suited for home appliances and industrial equipment requiring reliable switching performance in compact form factors.

Search Keywords: ALQ318

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
ALQ318
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410020
COO:
TH
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
18 V
Contact Arrangement:
SPST-NO
Mounting:
Through Hole
Termination Style:
PC Pin
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 85 °C
Coil Resistance:
1.62 KOhm

IN STOCK: 960

Ships today, if you order in

Factory Lead-Time 16 Weeks

Price (USD)

Qty
Unit Price
1
$2.59
25
$2.47
100
$1.91
1,000 +
$1.49
