Non-RoHS Equivalent
JS1A-12V
JS1A-12V

In Stock: 0

Minimum Order: 1

VIEW PRODUCT
RECOMMENDED REPLACEMENT

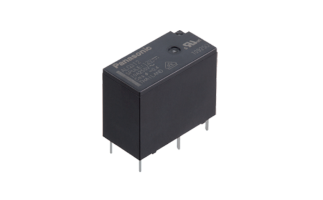

ALQ312
ALQ312

In Stock: 5,388

Minimum Order: 100

VIEW PRODUCT
JS1A-12V-F by panasonic electronic components
Image is representational - see manufacturer specifications
Panasonic Electronic Components Authorized Distributor

JS1A-12V-F

Power Relay 12VDC 5DC/10AAC SPST-NO(22x16x16.4)mm THT ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

The PANASONIC EW/AROMAT part JS1A-12V-F is a compact and reliable power relay designed for various electronic applications. With a coil voltage of 12VDC, it allows for efficient and precise power control. This single-pole single-throw normally open relay has a contact rating of 5VDC/10AAC, making it suitable for a wide range of low voltage and moderate current switching tasks. Measuring at 22x16x16.4mm, this through-hole mountable relay is compact and space-saving. It is built with high-quality materials and incorporates advanced technology to ensure excellent performance and durability. Whether used in automotive, industrial, or consumer electronics, the PANASONIC EW/AROMAT JS1A-12V-F power relay provides reliable and stable switching operations.

Search Keywords: JS1A12VF

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
JS1A-12V-F
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
TH
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
100
Relay Construction:
Non-Latching10725
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
SPST-NO10703
Maximum Current Rating:
10
Mounting:
Through Hole10716
Termination Style:
PC Pin10727
Push to Test Button:
No10724
Led Indicator:
No10708
Operating Temperature:
-40 to 70 °C
Coil Resistance:
400 Ohm
Life Cycle:
Discontinued & Replaced
  This product is not in stock and cannot be back-ordered
