JS1A-24V-F by panasonic electronic components

JS1A-24V-F

Panasonic Electronic Components

Power Relay 24VDC 5DC/10AAC SPST-NO(22x16x16.4)mm THT ...

Datasheet
RoHS Compliant
BOX Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PANASONIC EW/AROMAT part JS1A-24V-F is a compact and reliable power relay designed for a wide range of applications. This relay operates at 24VDC and can handle a current of 5DC/10AAC. It features a single-pole, single-throw normally open configuration, making it suitable for various switching tasks. With dimensions of 22x16x16.4mm and through-hole mounting (THT), this power relay can seamlessly integrate into your electronic circuit boards. Trust in the quality and performance of the PANASONIC EW/AROMAT JS1A-24V-F for your power control needs.

Search Keywords: JS1A24VF

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
JS1A-24V-F
RoHS:
Yes
HTS:
8536410050
COO:
TH
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
BOX
Relay Construction:
Non-Latching10725
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
SPST-NO10703
Mounting:
Through Hole10716
Termination Style:
PC Pin10727
Push to Test Button:
No10724
Led Indicator:
No10708
Operating Temperature:
-40 to 70 °C
Coil Resistance:
1.6 KOhm
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 12,723

Ships today, if you order in

Minimum Order: 100

Multiple: 100

Price (USD)

Qty
Unit Price
100
$2.050
200
$1.803
500
$1.586
1,000
$1.452
2,500 +
$1.288
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
RECOMMENDED REPLACEMENT

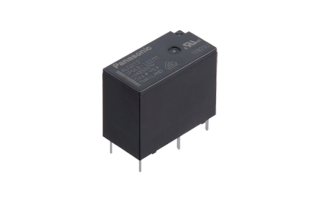

ALQ324
ALQ324
VIEW PRODUCT
