JW1FSN-DC12V by panasonic electronic components

JW1FSN-DC12V

Panasonic Electronic Components

General purpose relay - Electromechanical relay – High capacity - Miniature PCB type power relay - Miniature size with universal terminal footprint - High dielectric with standing for transient protection- Sealed construction for automatic cleaning - SPDT ...

Datasheet
RoHS Compliant
BOX Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PANASONIC EW/AROMAT JW1FSN-DC12V is a miniature PCB, general purpose SPDT plastic sealed relay with universal terminal footprint, high contact capacity and through hole mounting. It has a voltage rating of 12 VDC and a current rating of 10 A. This relay can be used for home appliances (air conditioner, heater), office machines (PPC, facsimile), vending machines, and industrial equipment (NC machines, Robots, Temperature controllers)

Search Keywords: JW1FSNDC12V

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
JW1FSN-DC12V
RoHS:
Yes
HTS:
8536410050
COO:
TH
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
BOX
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
SPDT
Maximum Current Rating:
10 A
Mounting:
Through Hole
Termination Style:
PC Pin
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 60 °C
Coil Resistance:
270 Ohm

IN STOCK: 4,145

Ships today, if you order in

Minimum Order: 100

Multiple: 100

Factory Lead-Time 24 Weeks

Price (USD)

Qty
Unit Price
100
$1.566
300
$1.473
500
$1.421
1,000
$1.360
2,500
$1.277
5,000
$1.215
7,500
$1.174
10,000 +
$1.154
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

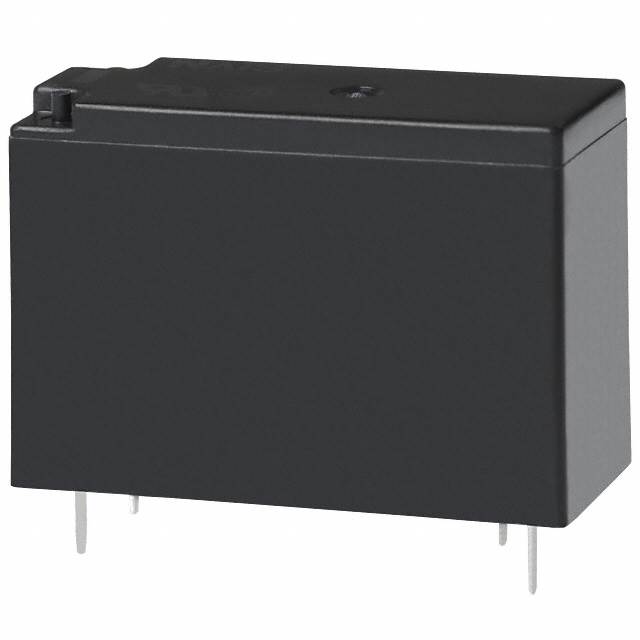

Older Equivalent
JW1EN-DC12V
JW1EN-DC12V
VIEW PRODUCT
