1521591 by phoenix contact canada

1521591

Phoenix Contact Canada

Sensor/actuator connector - Universal - 4-position - Plug straight M12 SPEEDCON - A-coded - Insulation displacement connection - knurl material: Zinc die-cast - nickel-plated - external cable diameter 4 mm ... 8 mm ...

Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

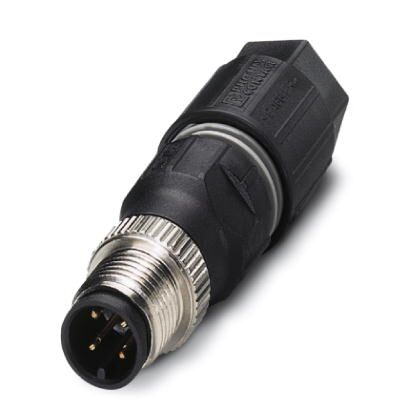

1641785 is a 4-position, straight plug, universal M12 sensor/actuator connector. This A-coded connector is connected by insulation displacement connection which allows connection without stripping any single wire. Contact material is made of Copper Tin in bright alloy/white bronze finish and knurl material is nickel plated zinc die-cast. The product has housing diameter of 18.4mm, length of 55mm, and external cable diameter of 4mm to 8mm. Conductor cross section is 18 to 22 AWG.

Search Keywords: 1521591

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact Canada
Part No:
1521591
RoHS:
Yes
HTS:
85366990
COO:
DE
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Sensor Actuator
Gender:
M
Body Orientation:
Straight
Mounting:
Cable Mount
Number of Contacts:
4
Contact Gender:
M
Contact Plating:
Gold over Nickel
Termination Method:
Quick Connect
Maximum Current Rating:
4 A
Maximum Voltage Rating:
250 V
Life Cycle:
Discontinued & Replaced
  This product is not in stock and cannot be back-ordered
RECOMMENDED REPLACEMENT
1641785
1641785
