SACC-MS-5CON-PG 7-M SCO by phoenix contact canada

SACC-MS-5CON-PG 7-M SCO

Phoenix Contact Canada

Connector - Universal - 5-position - Plug straight M12 SPEEDCON - A-coded - Screw connection - knurl material: Zinc die-cast - nickel-plated - cable gland Pg7 - external cable diameter 4 mm ... 6 mm ...

Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

1663116 is a 5-position, straight plug, universal M12 connector. This A-coded connector is screw connected, which is a proven connection technology for a large selection of different conductors. Contact material is made of Copper Zinc in bright alloy/white bronze finish and knurl material is nickel plated zinc die-cast. The product has Pg7 cable glands, housing diameter of 20mm, length of 60mm, and external cable diameter of 4mm to 6mm. Conductor cross section is 18 to 24AWG.

Search Keywords: SACCMS5CONPG7MSCO

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact Canada
Part No:
SACC-MS-5CON-PG 7-M SCO
RoHS:
Yes
HTS:
85366990
COO:
DE
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Sensor Actuator
Gender:
RCP
Body Orientation:
Straight
Mounting:
Cable Mount
Number of Contacts:
5
Contact Gender:
M
Contact Plating:
White Bronze
Termination Method:
Screw
Maximum Current Rating:
4 A
Maximum Voltage Rating:
60 V
Life Cycle:
Discontinued & Replaced
  This product is not in stock and cannot be back-ordered
RECOMMENDED REPLACEMENT

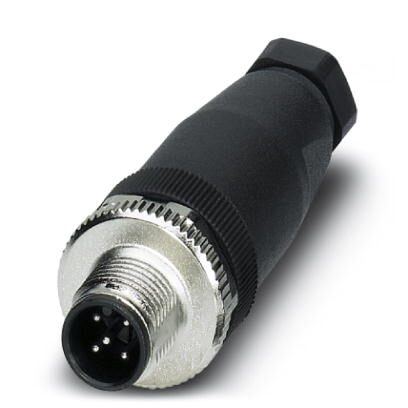

SACC-M12MS-5CON-PG 7-M
SACC-M12MS-5CON-PG 7-M
