0916605 by phoenix contact

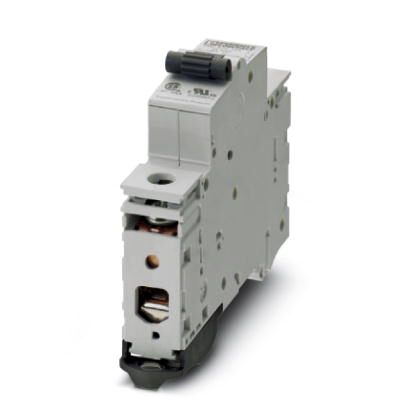

Image is representational - see manufacturer specifications
Phoenix Contact Authorized Distributor

0916605

Thermomagnetic circuit breaker - 1-pos. - for DIN rail mounting ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The thermomagnetic protection switches are characterized by their compact construction, their wide-area labeling possibilities and the double plug-in bridge recess Unequivocal assignment of the respective protection switch by means of large-area central labeling High availability of the installation through the possibility of resetting and unequivocal status indication. Type: Thermomagnetic Current Rating: 2 A Voltage Rating AC: 240 VAC Voltage Rating DC: 28 VDC Number of Poles: 1 Pole Actuator Type: Pushbutton Minimum Operating Temperature: - 30 C Maximum Operating Temperature: + 60 C Illuminated: Not Illuminated Packaging: Bulk Height: 85.5 mm Termination Style: Screw Voltage Rating: 240 VAC, 28 VDC Width: 12.3 mm

Search Keywords: 0916605

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
0916605
Alias/AKA:
0916605
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536200020
COO:
CZ
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
6
Mounting:
DIN Rail
Actuator Type:
Push Button
Number of Terminals:
2
Current Rating:
2 A
Family:
0916605
Number of Poles:
1

IN STOCK: 68

Ships today, if you order in

Factory Lead-Time 5 Weeks

Price (USD)

Qty
Unit Price
1
$19.59
6 +
$18.61
Supplier's Standard Package
Log in for special pricing

Tools/3D Models

Product Guides

Accessories

FBS-20-6

Plug-in bridge - pitch: 6.2 mm - width: 122.3 mm - number of positions: 20 - color: red

ZB-12:UNPRINTED

Zack marker strip - Strip - white - unlabeled - can be labeled with: PLOTMARK - CMS-P1-PLO ...

FBS-4-6

Plug-in bridge - pitch: 6.2 mm - width: 23.1 mm - number of positions: 4 - color: red

UC-TM-12

Connector Accessories Terminal Block Marker Straight Polyamide White

FBS-10-6

Plug-in bridge - pitch: 6.2 mm - width: 60.3 mm - number of positions: 10 - color: red

FBS-2-6

Plug-in bridge - pitch: 6.2 mm - width: 10.7 mm - number of positions: 2 - color: red

FBS-5-6

Plug-in bridge - pitch: 6.2 mm - width: 29.3 mm - number of positions: 5 - color: red

FBS-3-6

Plug-in bridge - pitch: 6.2 mm - width: 16.9 mm - number of positions: 3 - color: red

Show 6 More
