1079073 by phoenix contact

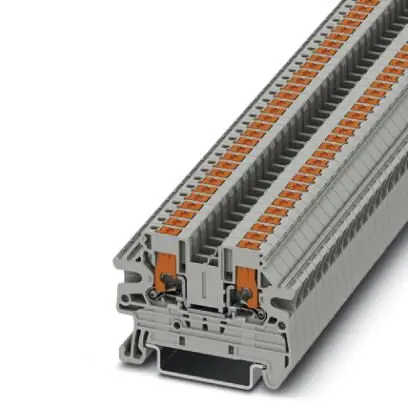

Image is representational - see manufacturer specifications
Phoenix Contact Authorized Distributor

1079073

The 1079073 is a gray, double-level terminal block featuring a Push-in connection method, rated for 800 V and 22 A, and accommodating conductors from 0.14 mm² to 4 mm². ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 1079073 is a double-level terminal block designed for DIN rail mounting (NS35/7,5, NS35/15) that utilizes a tool-free Push-in connection method. It is rated for a nominal voltage of 800 V and a nominal current of 22 A, supporting a conductor cross-section range of 0.14 mm² to 4 mm². Key features include a 6 kV rated surge voltage, a V0 flammability rating, and offset levels that ensure unhindered access to the lower connection points even when fully wired. Having been tested for railway applications, this terminal block is also well-suited for machine building, plant engineering, and process industry environments where reliable connections are critical.

Search Keywords: 1079073

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1079073
Alias/AKA:
1079073
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
50

IN STOCK: 0

On Order: 300   can ship 11/30/26

Factory Lead-Time 13 Weeks

Price (USD)

Qty
Unit Price
1
$4.26
50 +
$4.05
Supplier's Standard Package
Log in for special pricing

Tools/3D Models

Product Guides
