Image is representational - see mfr. specs

1402018

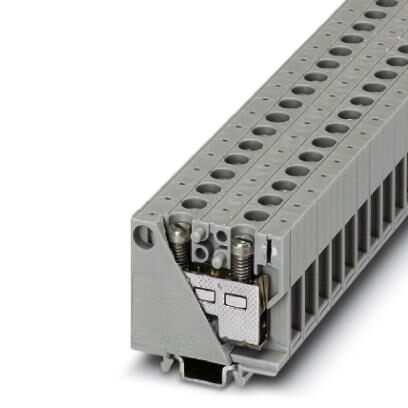

Mini feed-through terminal block - nom. voltage: 500 V - nominal current: 61 A - connection method: Screw connection - number of connections: 2 - cross section: 0.5 mm² - 10 mm² - AWG: 20 - 8 - width: 7.5 mm - color: gray - mounting type: NS 15 ...

Datasheet

RoHS Compliant

Discontinued & Replaced

DESCRIPTION

The MUT 6 is a mini feed-through terminal block designed for space-saving wire termination on an NS 15 DIN rail. It utilizes a screw connection method and supports a wide conductor cross-section from 0.5 mm² to 10 mm² for solid conductors and up to 6 mm² for flexible conductors. This terminal block is rated for a nominal voltage of 500V and a nominal current of 41A, with a maximum load current of 57A. Its compact 8.2 mm width, polyamide housing, and compatibility with standardized plug-in bridges make it ideal for applications requiring clear arrangements and easy potential distribution in control cabinets and industrial systems.

Product Highlights:

Potential Applications:

Search Keywords: 1402018

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Phoenix Contact

Part No:

1402018

Alias/AKA:

1402018

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536904000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
