1417296 by phoenix contact

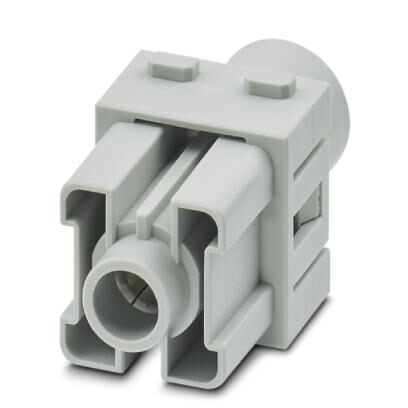

Image is representational - see manufacturer specifications
Phoenix Contact Authorized Distributor

1417296

The 1417296 is a 2-position HEAVYCON socket contact insert module with an axial screw connection, rated for up to 70 A and 1000 V. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 1417296 is a HEAVYCON contact insert module featuring 2 socket positions with an axial screw connection. It is engineered to handle a rated current of 70 A and a rated voltage of 1000 V (Overvoltage Category III), with a surge voltage rating of 8 kV. The module accepts conductor cross-sections from 6 mm² to 25 mm² (AWG 8-6) and is constructed with silver-plated copper alloy contacts and a polycarbonate carrier. It ensures durability with at least 500 insertion/withdrawal cycles and operates reliably in ambient temperatures from -40 °C to 125 °C. This module is designed for use in HEAVYCON HC-B6 to B48 housings for robust power connections in industrial environments.

Search Keywords: 1417296

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1417296
Alias/AKA:
1417296
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536698000
COO:
PL
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
2
Type:
HEAVYCON Contact Insert Module
Mounting:
Cable Mount
Body Orientation:
Straight
Gender:
RCP
Pitch:
N/A
Termination Method:
N/A
Number of Contacts:
2
Maximum Voltage Rating:
1000 V
Maximum Current Rating:
70 A
Operating Temperature:
-40 to 125 °C

IN STOCK: 0

Manufacturer Stock: 152   can ship 11/16/26

On Order: 180   can ship 11/18/26

Factory Lead-Time 5 Weeks can ship 12/9/26

Price (USD)

Qty
Unit Price
1
$30.05
2 +
$28.54
Supplier's Standard Package
Log in for special pricing
