1688573

RJ45 pin insert - CAT5e - 8-pos. - shielded - IDC connection method - for litz wires AWG 26 and solid wires AWG 26 ... 24 ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The PHOENIX CONTACT part 1688573 is an RJ45 pin insert designed for CAT5e connections. This shielded pin insert features an 8-position IDC connection method, making it easy to install and connect litz wires AWG 26 and solid wires AWG 24 to 26. Perfect for networking applications where reliable and high-speed connections are essential, this RJ45 pin insert ensures secure and efficient data transmission.

Search Keywords: 1688573

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1688573
Alias/AKA:
1688573
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694030
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
5
Type:
RJ-45
Body Orientation:
Straight
Mounting:
Cable Mount
Pitch:
N/A
Gender:
PL
Number of Contacts:
8
Maximum Voltage Rating:
72 VDC
Maximum Current Rating:
1.5 A
Operating Temperature:
-40 to 85 °C

IN STOCK: 130

Ships today, if you order in

Minimum Order Quantity: 5

Factory Lead-Time 2 Weeks

Price (USD)

Qty
Unit Price
5
$5.71
10 +
$5.42
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Product Changes

Accessories

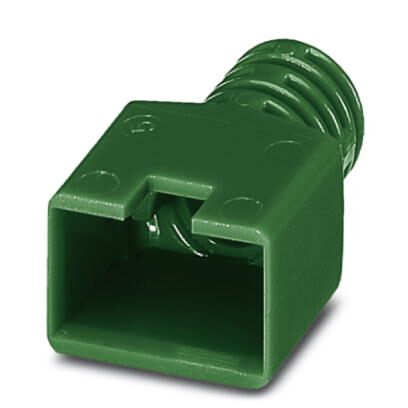

VS-08-KS/GN

The VS-08-KS/GN is a green RJ45 bending protection sleeve designed for cables with an exte ...

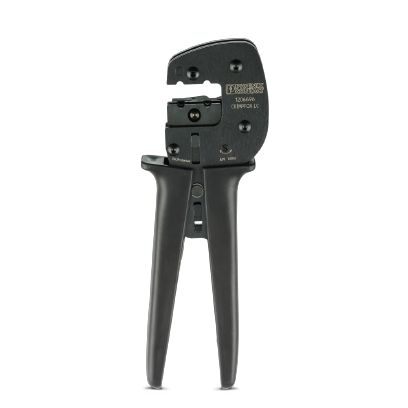

CRIMPFOX-LC

Basic crimping pliers - with short handles - without crimp inserts - with locator takeup

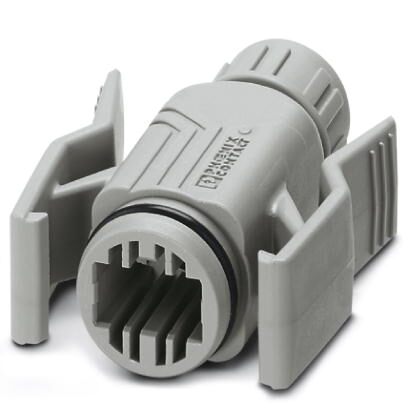

VS-08-T-G-RJ45/IP20
