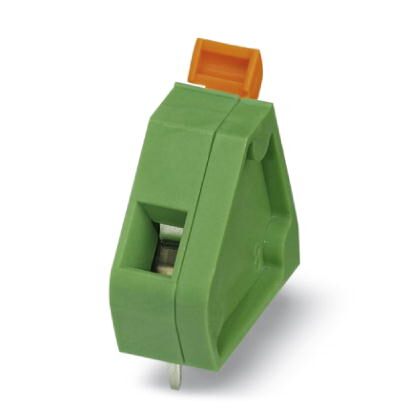

ZFKDSA-1-5-W-7-62
ZFKDSA-1-5-W-7-62

In Stock: 2

Minimum Order: 250

VIEW PRODUCT
1706730 by phoenix contact
Image is representational - see manufacturer specifications
Phoenix Contact Authorized Distributor

1706730

The 1706730 is a single-position, green PCB terminal block with a spring-cage connection, a 7.62 mm pitch, and a 45° conductor connection direction for wave soldering applications. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
End of Life: Final orders must be placed by 07/31/2027
Certificate of Compliance

DESCRIPTION

The 1706730 is a single-position PCB terminal block designed for wave soldering applications. This green terminal block is rated for a nominal current of 16 A and a nominal voltage of 320 V (III/2), featuring a 7.62 mm pitch and a spring-cage connection method. It accommodates a wide range of conductor cross-sections from 24 to 14 AWG (0.2 mm² to 2.5 mm²) and has a 45° conductor-to-PCB connection angle. As an end terminal block, it is ideal for terminating custom-grouped block assemblies, and its angled design enables multi-row arrangements on the PCB.

Search Keywords: 1706730

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1706730
Alias/AKA:
1706730
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
IN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
250
Type:
Spring Cage
Mounting:
Through Hole
Gender:
N/A
Termination Method:
Solder
Pitch:
N/R
Number of Circuits:
1
Maximum Voltage Rating:
320 V
Maximum Current Rating:
16 A
Wire Size:
14-24 AWG
Operating Temperature:
N/A
End of Life:
Final orders must be placed by 07/31/2027
  End of Life: Final orders must be placed by 07/31/2027

IN STOCK: 2

Ships today, if you order in

Buy all 2 in-stock or the regular minimum order quantity of 250

On Order: 1,500   can ship 10/26/26

Stock lot only: 2

Minimum Order Quantity: 250

Multiple: 250

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
1
$0.7588
250
$0.6898
500
$0.6795
1,000
$0.6693
2,500
$0.6070
5,000
$0.5979
7,500
$0.5890
10,000
$0.5801
15,000 +
$0.5714
Supplier's Standard Package
