1711738 by phoenix contact
Image is representational - see mfr. specs

1711738

Phoenix Contact

PCB terminal block - nominal current: 24 A - rated voltage (III/2): 400 V - nominal cross section: 2.5 mm² - pitch: 5.08 mm - number of positions: 3 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connection direction: 0 ° - color: green - Pin layout: Linear pinning - Solder pin [P]: 5 mm. The article can be aligned to create different nos. of positions! ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PHOENIX CONTACT part 1711738 is a PCB terminal block ideal for various electrical applications. With a nominal current of 24 A and a rated voltage of 400 V, it ensures safe and reliable connections. The terminal block has a convenient pitch of 5.08 mm and a nominal cross-section of 2.5 mm², making it suitable for use with a variety of wire sizes. Featuring a screw connection with a tension sleeve, this terminal block ensures secure and durable connections. It can be easily mounted using wave soldering. The conductor/PCB connection direction is 0°, making it versatile for different orientations in your PCB design. The terminal block is colored green, providing easy identification and organization. It has a linear pinning pin layout, and the solder pin has a length of 5 mm. Additionally, this article can be easily aligned to create different numbers of positions, providing flexibility in your PCB design.

Search Keywords: 1711738

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1711738
Alias/AKA:
1711738, MKDS-3/-3-5-08
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
PC Terminal Block
Mounting:
Through Hole
Gender:
N/A
Termination Method:
Solder
Pitch:
5.08 mm
Number of Circuits:
3
Maximum Voltage Rating:
400 V
Maximum Current Rating:
24 A
Wire Size:
12-24 AWG
Operating Temperature:
N/A

IN STOCK: 610

Ships today, if you order in

Manufacturer Stock: 21,075   can ship 5/4/26

On Order: 1,000   can ship 5/4/26

Minimum Order Quantity: 10

Factory Lead-Time 11 Weeks can ship 7/9/26

Price (USD)

Qty
Unit Price
10
$3.07
50
$2.39
300
$2.22
500
$2.21
1,000
$2.19
2,500
$2.18
5,000
$2.17
7,500 +
$2.16
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes

Accessories

1733169

Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch

1205053

Actuation tool - for ST terminal blocks - insulated - also suitable for use as a bladed sc ...

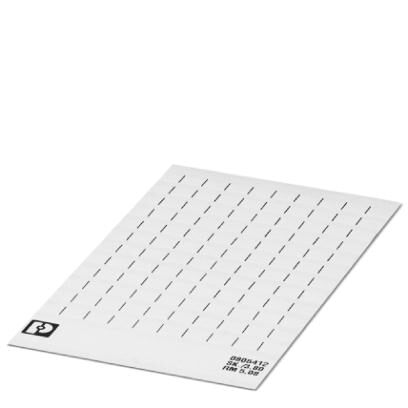

0805412

Marker card - Card - white - unlabeled - can be labeled with: Marker pen - mounting type: ...

0804293

Marker card - Card - white - labeled - Horizontal: consecutive numbers 1 ... 10 - 11 ... 2 ...

1733172

Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch

1051993

Marker pen - for manual labeling of unprinted Zack strips - smear-proof and waterproof - l ...

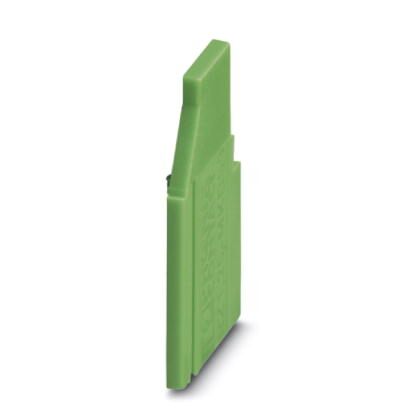

1703047

Pitch spacer - for adjusting the pitches between MKDS and GMKDS terminal blocks in mixed r ...

Show 5 More
