1754562 by phoenix contact

1754562

Phoenix Contact

PCB connector - nominal current: 12 A - rated voltage (III/2): 320 V - nominal cross section: 2.5 mm² - number of positions: 8 - pitch: 5 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin ...

Datasheet
RoHS Compliant
Bulk Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

1754562 is an 8-position, green PCB connector with nominal current of 12A and rated voltage (III/2) of 320 V. It fits conductors with cross sections of 12-24 AWG, connected by M3 screw with tension sleeve. Product's dimesions are 18.2mm x 40mm x 15mm (lxwxh), and a pitch of 5mm.

Search Keywords: 1754562

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1754562
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Bulk
Type:
Terminal Block
Mounting:
Cable Mount
Gender:
F
Termination Method:
Screw
Pitch:
5 mm
Number of Circuits:
8
Maximum Voltage Rating:
250@IEC,300@UL V
Maximum Current Rating:
12 A
Wire Size:
12-24 AWG
Operating Temperature:
N/A

IN STOCK: 160

Can Ship immediately

Minimum Order: 5

Factory Lead-Time 4 Weeks

Price (CAD)

Qty
Unit Price
5
$11.638
25
$10.199
50
$9.725
100
$9.219
250
$8.760
500
$8.714
1,000
$8.667
2,500 +
$8.621
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes

Accessories

0804183

Marker card - Card - white - labeled - Horizontal: consecutive numbers 1 ... 10 - 11 ... 2 ...

1783779

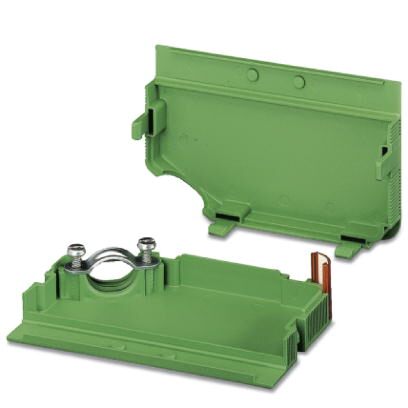

Cable housing - pitch: 0 mm - number of positions: 8 - dimension a: 40 mm - color: green

1803921

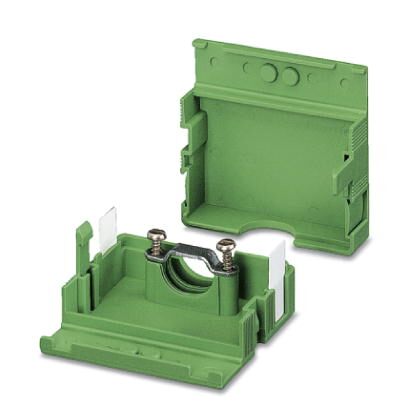

Cable housing - pitch: 0 mm - number of positions: 8 - dimension a: 40 mm - color: green

1205053

Actuation tool - for ST terminal blocks - insulated - also suitable for use as a bladed sc ...

1734634

Coding profile - is inserted into the slot on the plug or inverted header - red insulating ...
