1757077

PCB connector - nominal current: 12 A - rated voltage (III/2): 320 V - nominal cross section: 2.5 mm² - number of positions: 8 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 1757077 is a 8-position 5.08mm printed-circuit board connector Terminal Block with PA (polyamide) insulator, 2.5mm² conductor area and screw wire connection method, 24 to 12AWG wire size and M3 screw thread. UL94V-0 Flammability rating 7mm Stripping length Tin-plated contacts Green colour Plug-in direction parallel to conductor axis Individual position coding by inserting coding profiles Applications Industrial

Search Keywords: 1757077

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1757077
Alias/AKA:
1757077
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
50
Type:
Terminal Block
Mounting:
Cable Mount
Gender:
F
Termination Method:
Screw
Pitch:
5.08 mm
Number of Circuits:
8
Maximum Voltage Rating:
250@IEC,300@UL V
Maximum Current Rating:
12@IEC,10@UL A
Wire Size:
12-24@IEC,12-30@UL AWG
Operating Temperature:
N/A

IN STOCK: 0

On Order: 7,627   can ship 11/23/26

Minimum Order Quantity: 5

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
5
$7.23
25
$5.89
50
$5.58
100
$5.22
250
$5.13
500
$5.11
1,000
$5.10
2,500 +
$5.09
Supplier's Standard Package
Log in for special pricing

Tools/3D Models

Product Guides

Product Changes

Accessories

1734634

Coding profile - is inserted into the slot on the plug or inverted header - red insulating ...

1783779

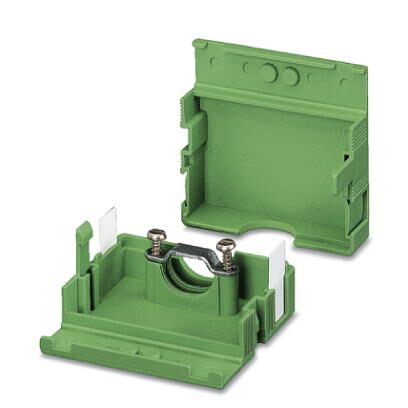

Cable housing - pitch: 0 mm - number of positions: 8 - dimension a: 40 mm - color: green

1205053

Actuation tool - for ST terminal blocks - insulated - also suitable for use as a bladed sc ...

1733169

Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch

0803883

50 Perforated 185.0MM Length Strips White Polyester Self Adhesive Unmarked Pitch As Desire ...

1733185

Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch

1051993

Marker pen - for manual labeling of unprinted Zack strips - smear-proof and waterproof - l ...

1733172

Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch

1733198

Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch

1733208

Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch

1803921

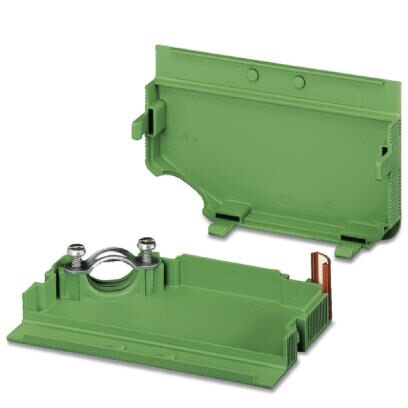

Cable housing - pitch: 0 mm - number of positions: 8 - dimension a: 40 mm - color: green
