1778085 by phoenix contact

1778085

Phoenix Contact

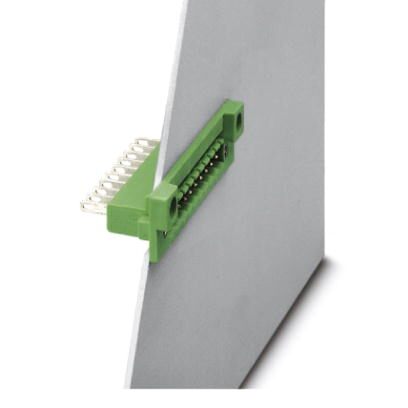

PCB connector - nominal current: 12 A - rated voltage (III/2): 320 V - nominal cross section: 2.5 mm² - number of positions: 12 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PHOENIX CONTACT part 1778085 is a PCB connector designed for reliable and secure connections. With a nominal current of 12 A and a rated voltage of 320 V (III/2), this connector is suitable for a variety of electrical applications. The nominal cross section of 2.5 mm² allows for efficient power transmission. Featuring 12 positions and a pitch of 5.08 mm, this connector offers a spacious layout and easy installation. The connection method is a screw connection with a tension sleeve, ensuring a strong and stable connection. The connector is made of high-quality materials, with a green color that adds visibility and distinction. The contact surface is coated with tin, enhancing conductivity and preventing corrosion. Overall, the PHOENIX CONTACT part 1778085 is a reliable and versatile PCB connector that provides excellent performance and durability for various electrical projects.

Search Keywords: 1778085

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1778085
RoHS:
Yes
HTS:
8536694040
COO:
US
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
Terminal Block
Mounting:
Panel Mount
Gender:
F
Termination Method:
Screw
Pitch:
5.08 mm
Number of Circuits:
12
Maximum Voltage Rating:
320 V
Maximum Current Rating:
12 A
Wire Size:
12-24 AWG
Operating Temperature:
N/A

IN STOCK: 0

Minimum Order: 5

Factory Lead-Time 4 Weeks

Price (CAD)

Qty
Unit Price
5
$22.495
25
$20.075
50
$18.636
100
$17.625
250
$17.365
500
$16.936
1,000 +
$16.691
