1803293 by phoenix contact

1803293

Phoenix Contact

PCB headers - nominal current: 8 A - rated voltage (III/2): 160 V - nominal cross section: 1.5 mm² - number of positions: 4 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.4 mm ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PHOENIX CONTACT part 1803293 is a set of PCB headers designed for reliable and efficient electrical connections. With a nominal current of 8 A and a rated voltage of 160 V (III/2), this header is capable of safely handling various electrical loads. The nominal cross section of 1.5 mm² ensures proper conductivity and stability.Featuring 4 positions and a pitch of 3.81 mm, this PCB header is suitable for compact circuit board designs. The vibrant green color not only adds a visually appealing touch but also helps with easy identification during installation and troubleshooting processes.The header comes with a tin contact surface, known for its excellent conductivity and resistance to corrosion. This ensures optimal electrical performance and durability. The wave soldering mounting method offers convenience and reliability during the assembly process.With a linear pinning pin layout and a solder pin measuring 3.4 mm, this PCB header provides straightforward and hassle-free installation. It is a reliable and efficient solution for various applications requiring secure electrical connections.

Search Keywords: 1803293

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1803293
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
250
Type:
Shrouded Header (4 Sides)
Body Orientation:
Right Angle
Gender:
HDR
Mounting:
Through Hole
Pitch:
3.81 mm
Number of Contacts:
4
Maximum Voltage Rating:
160@IEC,300@UL V
Maximum Current Rating:
8 A
Termination Method:
Solder
Operating Temperature:
-40 to 100 °C

IN STOCK: 1,397

Ships today, if you order in

Manufacturer Stock: 19,813   can ship 12/5/25

Minimum Order: 25

Factory Lead-Time 11 Weeks can ship 2/5/26

Price (CAD)

Qty
Unit Price
25
$2.190
100
$1.869
250
$1.806
500 +
$1.716
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes

Accessories

0804109

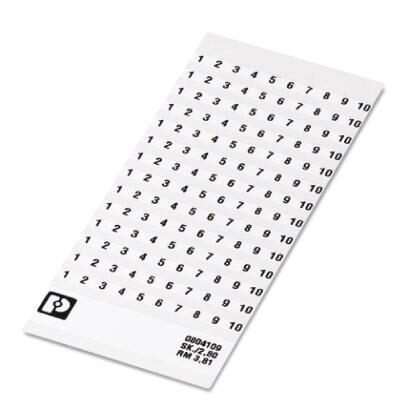

Marker card - Card - white - labeled - Horizontal: consecutive numbers 1 ... 10 - 11 ... 2 ...

1051993

Marker pen - for manual labeling of unprinted Zack strips - smear-proof and waterproof - l ...

1841174

Conn Fiber Optic M Solder RA Thru-Hole

1841190

Fiber optics, Pitch: 3.81 mm, Number of positions: 10, Dimension a: 2.3 mm, Color: transpa ...

1841213

Fiber optics, Pitch: 3.81 mm, Number of positions: 10, Dimension a: 4 mm, Color: transpare ...

1734634

Coding profile - is inserted into the slot on the plug or inverted header - red insulating ...
