1803358 by phoenix contact

1803358

Phoenix Contact

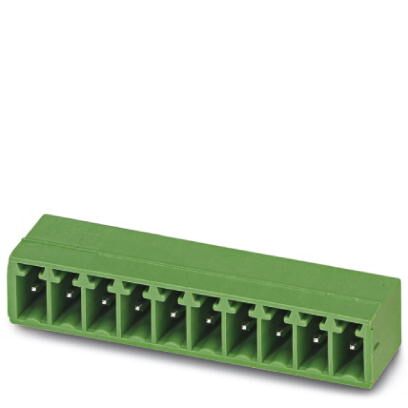

PCB headers - nominal current: 8 A - rated voltage (III/2): 160 V - nominal cross section: 1.5 mm² - number of positions: 10 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.4 mm ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PHOENIX CONTACT part 1803358 is a PCB header that is designed for reliable and efficient electrical connections. With a nominal current of 8 A and a rated voltage of 160 V, this PCB header is suitable for various applications. Featuring a nominal cross section of 1.5 mm² and a total of 10 positions, this header allows for secure and stable connections. The pitch of 3.81 mm makes it easy to install and integrate into existing circuit boards. The header is colored green for quick and easy identification. The contact surface is tin-plated, ensuring excellent conductivity and durability. It is specifically designed for wave soldering mounting method, making it suitable for high-volume production. The pin layout is linear, allowing for simple and straightforward wiring. The solder pin has a measurement of 3.4 mm, ensuring a secure and reliable connection to the PCB. Overall, the PHOENIX CONTACT part 1803358 is a high-quality and reliable solution for PCB connections, offering optimal performance and durability.

Search Keywords: 1803358

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1803358
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
Shrouded Header (4 Sides)
Body Orientation:
Right Angle
Gender:
HDR
Mounting:
Through Hole
Pitch:
3.81 mm
Number of Contacts:
10
Maximum Voltage Rating:
160 V
Maximum Current Rating:
8 A
Termination Method:
Solder
Operating Temperature:
N/A

IN STOCK: 367

Ships today, if you order in

Minimum Order: 5

Factory Lead-Time 11 Weeks

Price (USD)

Qty
Unit Price
5
$4.326
50
$3.605
100
$3.554
300
$3.255
500
$3.172
1,000
$3.121
2,500
$3.049
5,000 +
$3.008
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes

Accessories

0804109

Marker card - Card - white - labeled - Horizontal: consecutive numbers 1 ... 10 - 11 ... 2 ...

1051993

Marker pen - for manual labeling of unprinted Zack strips - smear-proof and waterproof - l ...

1841174

Conn Fiber Optic M Solder RA Thru-Hole

1841190

Fiber optics, Pitch: 3.81 mm, Number of positions: 10, Dimension a: 2.3 mm, Color: transpa ...

1841213

Fiber optics, Pitch: 3.81 mm, Number of positions: 10, Dimension a: 4 mm, Color: transpare ...

1734634

Coding profile - is inserted into the slot on the plug or inverted header - red insulating ...

Show 4 More
