1803471 by phoenix contact

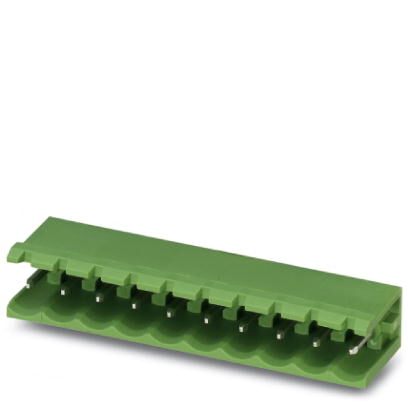

Image is representational - see manufacturer specifications
Phoenix Contact Authorized Distributor

1803471

The 1803471 is a 7-position, single-row PCB header with a 3.81 mm pitch designed for wave soldering applications. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 1803471 is a 7-position, green PCB header from the MCV 1,5/..-G product range, designed for the COMBICON MC 1,5 plug-in system. It features a nominal current rating of 8 A, a rated voltage (III/2) of 160 V, and tin-plated pin contacts. This single-row header has a 3.81 mm pitch, a linear pinning layout with 3.4 mm solder pins, and is intended for wave soldering mounting. Its vertical connection design enables multi-row arrangements on the PCB, providing flexibility for various device designs.

Search Keywords: 1803471

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1803471
Alias/AKA:
1803471
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
Shrouded Header (4 Sides)
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
3.81 mm
Number of Contacts:
7
Maximum Voltage Rating:
160 V
Maximum Current Rating:
8 A
Termination Method:
Solder
Operating Temperature:
-40 to 100 °C

IN STOCK: 3

Can Ship immediately

Buy all 3 in-stock or the regular minimum order quantity of 100

On Order: 500   can ship 5/3/27

Stock lot only: 3

Minimum Order Quantity: 100

Multiple: 100

Factory Lead-Time 31 Weeks

Price (USD)

Qty
Unit Price
1
$3.501
100
$3.183
300
$2.946
500
$2.843
1,000
$2.833
2,500
$2.822
5,000
$2.812
7,500
$2.802
10,000 +
$2.791
Supplier's Standard Package
Log in for special pricing

Tools/3D Models

Product Guides

Product Changes

Accessories

1051993

Marker pen - for manual labeling of unprinted Zack strips - smear-proof and waterproof - l ...

1734634

Coding profile - is inserted into the slot on the plug or inverted header - red insulating ...
