PCB headers - nominal current: 8 A - rated voltage (III/2): 160 V - nominal cross section: 1.5 mm² - number of positions: 10 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.4 mm ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PHOENIX CONTACT PCB header part 1803507 is designed for high-performance applications with a nominal current rating of 8 A and a rated voltage of 160 V. This header features a nominal cross-section of 1.5 mm², 10 positions with a pitch of 3.81 mm, and a bright green color for easy identification. The contact surface is coated with tin for improved conductivity, and the header is compatible with wave soldering mounting techniques. The linear pinning layout and solder pin length of 3.4 mm make it easy to integrate into various PCB designs.

Search Keywords: 1803507

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1803507
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
Shrouded Header (4 Sides)
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
3.81 mm
Number of Contacts:
10
Maximum Voltage Rating:
160 V
Maximum Current Rating:
8 A
Termination Method:
Solder
Operating Temperature:
N/A

IN STOCK: 0

On Order: 839   can ship 2/20/26

Minimum Order: 5

Factory Lead-Time 16 Weeks

Price (CAD)

Qty
Unit Price
5
$6.524
50
$4.915
100
$4.609
300
$4.472
500
$4.441
1,000
$4.426
2,500
$4.395
5,000 +
$4.380
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

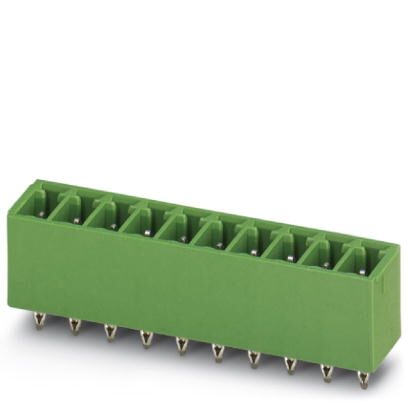

Older Equivalent
