1803617 by phoenix contact

1803617

Phoenix Contact

PCB connector - nominal current: 8 A - rated voltage (III/2): 160 V - nominal cross section: 1.5 mm² - number of positions: 6 - pitch: 3.81 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 1803617 is a 6-position green pluggable PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M2 screw connection. This MC 1,5/ 6-ST-3,81 terminal block has fully developed contact geometries and surfaces. It accepts 28 to 16AWG wire range. Generously dimensioned wiring space Plug-in direction parallel to the conductor axis Low design height of the MC 1,5 plug range 7mm Stripping length A1 Internal cylindrical gage UL94V-0 Flammability rating Applications Industrial

Search Keywords: 1803617

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1803617
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
Terminal Block
Mounting:
Cable Mount
Gender:
F
Termination Method:
Screw
Pitch:
3.81 mm
Number of Circuits:
6
Maximum Voltage Rating:
160@IEC,300@UL V
Maximum Current Rating:
8 A
Wire Size:
16-28 AWG
Operating Temperature:
N/A

IN STOCK: 3,452

Ships today, if you order in

Manufacturer Stock: 3,318   can ship 12/5/25

Minimum Order: 5

Factory Lead-Time 3 Weeks can ship 12/11/25

Price (CAD)

Qty
Unit Price
5
$10.566
25
$9.112
100
$7.841
250
$7.319
500
$7.289
1,000
$7.243
2,500
$7.212
5,000 +
$7.182
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes

Accessories

1007248

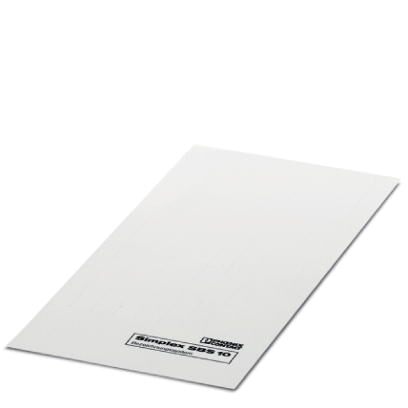

Marker card - Card - white - unlabeled - can be labeled with: CMS-P1-PLOTTER - perforated ...

1839050

Connector Accessories Marker Carrier
