1803620 by phoenix contact
Image is representational - see mfr. specs

1803620

Phoenix Contact

PCB connector - nominal current: 8 A - rated voltage (III/2): 160 V - nominal cross section: 1.5 mm² - number of positions: 7 - pitch: 3.81 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin - pin layout: Linear three-way pinning ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PHOENIX CONTACT part 1803620 is a highly reliable PCB connector with a compact design, perfect for various electronic applications. With a nominal current of 8 A and a rated voltage of 160 V (III/2), it ensures efficient power transmission. Its 1.5 mm² nominal cross section and 3.81 mm pitch make it suitable for smaller and densely packed circuit boards.Featuring a screw connection with tension sleeve, this connector guarantees secure and stable connections. Its bright green color adds a visual appeal to the overall assembly. The contact surface is coated with tin, providing excellent conductivity and corrosion resistance.Designed with a linear three-way pinning layout, this connector allows easy and straightforward wiring. It has seven positions available, accommodating multiple wire connections.Overall, the PHOENIX CONTACT part 1803620 is a high-quality PCB connector that offers optimal performance, versatility, and ease of use in a wide range of electronic projects.

Search Keywords: 1803620

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1803620
Alias/AKA:
1803620, MC-1-5/-7-ST-3-81
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
Terminal Block
Mounting:
Cable Mount
Gender:
F
Termination Method:
Screw
Pitch:
3.81 mm
Number of Circuits:
7
Maximum Voltage Rating:
160 V
Maximum Current Rating:
8 A
Wire Size:
16-28 AWG
Operating Temperature:
N/A

IN STOCK: 4

Ships today, if you order in

Buy all 4 in-stock or the regular minimum order quantity of 5

Manufacturer Stock: 295   can ship 5/8/26

On Order: 507   can ship 5/11/26

Stock lot only: 4

Minimum Order Quantity: 5

Factory Lead-Time 3 Weeks can ship 5/14/26

Price (USD)

Qty
Unit Price
1
$8.713
5
$7.921
25
$6.654
50
$6.520
100
$6.335
250
$5.995
500
$5.974
1,000
$5.943
2,500 +
$5.912
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Product Changes

Accessories

0804109

Marker card - Card - white - labeled - Horizontal: consecutive numbers 1 ... 10 - 11 ... 2 ...

1205037

Screwdriver - slot-headed - VDE insulated - size: 0.4 x 2.5 x 80 mm - 2-component grip - w ...

1834398

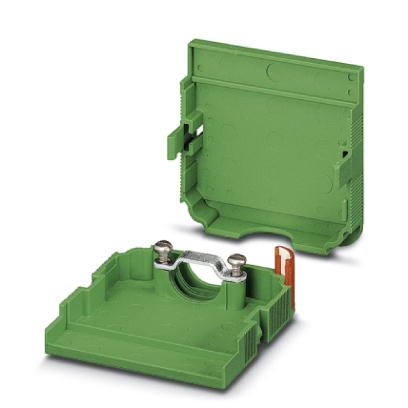

Cable housing - pitch: 3.81 mm - number of positions: 7 - dimension a: 29.09 mm - color: g ...
