1803675 by phoenix contact

1803675

Phoenix Contact

PCB connector - nominal current: 8 A - rated voltage (III/2): 160 V - nominal cross section: 1.5 mm² - number of positions: 12 - pitch: 3.81 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

1803675 is a 12-position, green PCB connector with nominal current of 8A and rated voltage (III/2) of 160 V. It fits conductors with cross sections of 16-28 AWG, connected by M2 screw with tension sleeve. Product's dimesions are 16.1mm x 46.51mm x 11.1mm (lxwxh), and a pitch of 3.81mm.

Search Keywords: 1803675

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1803675
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
Terminal Block
Mounting:
Cable Mount
Gender:
F
Termination Method:
Screw
Pitch:
3.81 mm
Number of Circuits:
12
Maximum Voltage Rating:
160 V
Maximum Current Rating:
8 A
Wire Size:
16-28 AWG
Operating Temperature:
N/A

IN STOCK: 283

Ships today, if you order in

Manufacturer Stock: 164   can ship 12/5/25

Minimum Order: 5

Factory Lead-Time 3 Weeks can ship 12/11/25

Price (CAD)

Qty
Unit Price
5
$16.385
25
$15.390
50
$14.946
100
$14.562
250
$14.195
500
$14.119
1,000 +
$14.057
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes

Accessories

0804109

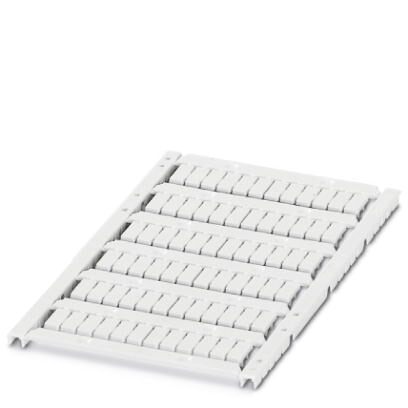

Marker card - Card - white - labeled - Horizontal: consecutive numbers 1 ... 10 - 11 ... 2 ...

1051993

Marker pen - for manual labeling of unprinted Zack strips - smear-proof and waterproof - l ...

1205037

Screwdriver - slot-headed - VDE insulated - size: 0.4 x 2.5 x 80 mm - 2-component grip - w ...

1834440

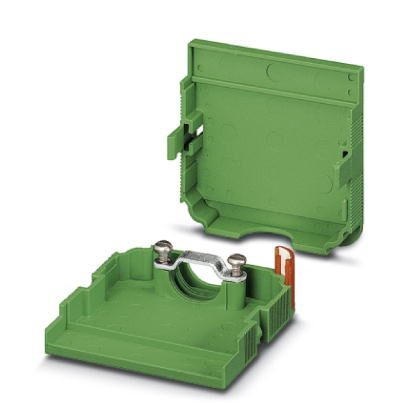

Cable housing - pitch: 3.81 mm - number of positions: 12 - dimension a: 48.11 mm - color: ...

Show 2 More
