1827923

Phoenix Contact

PCB headers - nominal current: 8 A - rated voltage (III/2): 160 V - nominal cross section: 1.5 mm² - number of positions: 8 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.4 mm ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PHOENIX CONTACT part 1827923 is a PCB header that is designed for efficient and reliable electrical connections. With a nominal current of 8 A and a rated voltage of 160 V, this header is capable of handling various power requirements. The nominal cross section of 1.5 mm² ensures optimal conductivity. Featuring 8 positions and a pitch of 3.81 mm, this header provides ample space for connecting multiple wires or components. The green color adds a visually pleasing touch to any circuit board design. The contact surface of the header is coated with tin, enhancing its electrical conductivity and resistance to corrosion. It is designed for easy integration using wave soldering mounting techniques. The linear pinning layout and solder pin with a length of 3.4 mm ensure secure and reliable connections. Whether you are a professional circuit board designer or a DIY enthusiast, the PHOENIX CONTACT part 1827923 is an excellent choice for your electrical connections.

Search Keywords: 1827923

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1827923
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
Shrouded Header (4 Sides)
Body Orientation:
Right Angle
Gender:
HDR
Mounting:
Through Hole
Pitch:
3.81 mm
Number of Contacts:
8
Maximum Voltage Rating:
160 V
Maximum Current Rating:
8 A
Termination Method:
Solder
Operating Temperature:
N/A

IN STOCK: 237

Can Ship immediately

Minimum Order: 5

Factory Lead-Time 6 Weeks

Price (CAD)

Qty
Unit Price
5
$8.162
50
$6.799
100
$6.417
300
$6.064
500
$5.972
1,000
$5.834
2,500
$5.743
5,000 +
$5.651
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

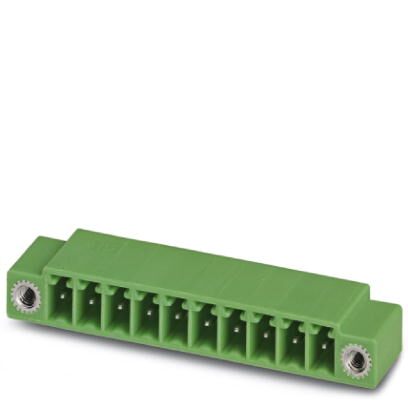

Older Equivalent
1897005
1897005
VIEW PRODUCT
