1827981 by phoenix contact

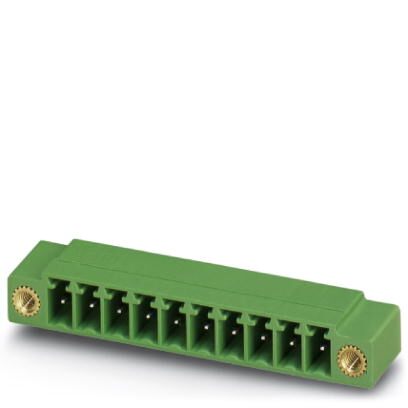

Image is representational - see mfr. specs

1827981

Phoenix Contact

PCB headers - nominal current: 8 A - rated voltage (III/2): 160 V - nominal cross section: 1.5 mm² - number of positions: 14 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.4 mm ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PHOENIX CONTACT PCB header part 1827981 is designed for reliable and efficient electrical connections in printed circuit boards. With a nominal current rating of 8 A and a rated voltage of 160 V, this header is suitable for various applications. The 1.5 mm² nominal cross section ensures high conductivity and minimizes losses. Featuring 14 positions and a pitch of 3.81 mm, this green-colored header is easy to install and provides ample space for connections. The contact surface is coated with tin for improved corrosion resistance and enhanced electrical performance. The header is compatible with wave soldering techniques for quick and efficient assembly. The linear pinning layout and solder pin (P) measuring 3.4 mm make the connection process hassle-free. Trust the reliability and quality of PHOENIX CONTACT for your PCB header needs.

Search Keywords: 1827981

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1827981
Alias/AKA:
1827981
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
Wire to Board
Body Orientation:
Right Angle
Gender:
HDR
Mounting:
Through Hole
Pitch:
3.81 mm
Number of Contacts:
14
Maximum Voltage Rating:
160 V
Maximum Current Rating:
8 A
Termination Method:
Solder
Operating Temperature:
N/A

IN STOCK: 17

Can Ship immediately

Minimum Order Quantity: 5

Factory Lead-Time 6 Weeks

Price (USD)

Qty
Unit Price
5
$5.92
25
$5.38
50
$5.29
100
$5.22
250
$5.06
500
$4.97
1,000
$4.90
2,500 +
$4.83
Suppliers Standard Package
