1828346 by phoenix contact

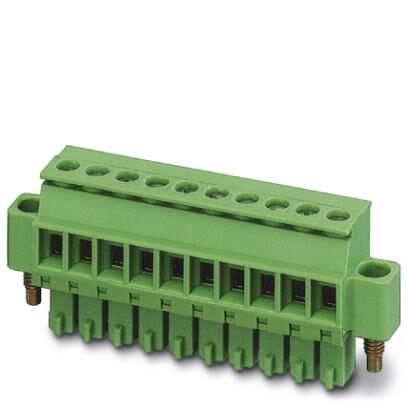

Image is representational - see mfr. specs

1828346

Phoenix Contact

The 1828346 is a 2-position printed-circuit board connector plug with a 3.81 mm pitch, rated for 8 A and 160 V, utilizing a screw connection with a tension sleeve. ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 1828346 is a 2-position plug component designed for PCB connections. It features a 3.81 mm pitch and uses a screw connection with a tension sleeve to accommodate conductors from 28 to 16 AWG. This connector is rated for a nominal current of 8 A and a voltage of 160 V (III/2), with a tin contact surface for reliable connectivity. A screwable flange ensures superior mechanical stability after installation. Thanks to its well-known connection principle and ability to connect two conductors, it is suitable for a wide range of industrial and electronic applications requiring secure, high-contact-force connections.

Search Keywords: 1828346

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1828346
Alias/AKA:
1828346, MCVR-1-5/-2-STF-3-81
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
Terminal Block
Mounting:
Panel Mount
Gender:
F
Termination Method:
Screw
Pitch:
3.81 mm
Number of Circuits:
2
Maximum Voltage Rating:
160 V
Maximum Current Rating:
8 A
Wire Size:
16-28 AWG
Operating Temperature:
-40 to 100 °C

IN STOCK: 250

Ships today, if you order in

Minimum Order Quantity: 50

Multiple: 50

Factory Lead-Time 11 Weeks

Price (USD)

Qty
Unit Price
50
$2.35
100
$2.21
250
$2.10
500
$2.02
1,000
$1.97
2,500
$1.92
5,000
$1.90
7,500 +
$1.86
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
