1852105 by phoenix contact
Image is representational - see mfr. specs

1852105

Phoenix Contact

The 1852105 is a 10-position, 5.08 mm pitch feed-through assembly frame accessory for COMBICON plugs. ...

Datasheet
RoHS Compliant
Packaging
Accessories
End of Life: Final orders must be placed by 07/31/2027
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

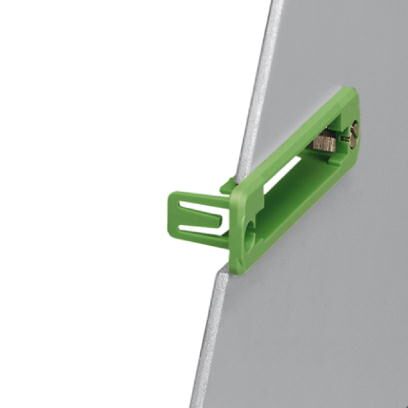

The 1852105 is a feed-through assembly frame designed for use with the inverted COMBICON plug IC 2,5/-STGF-5,08. This 10-position green frame features a 5.08 mm pitch and is constructed from polyamide (PA) insulating material with a UL 94 V0 flammability rating. It provides a vibration-resistant screw connection via screw flanges and allows for snap-locking of the IC plug into the frame. The frame is suitable for panel mounting with a thickness of up to 1.5 mm, enabling secure feed-through connections in electronic enclosures.

Search Keywords: 1852105

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1852105
Alias/AKA:
1852105, IC-DFR-10
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
3926909989
COO:
PL
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
Frame
Dimension:
74.47 x 19.2 x 16.75 mm
Operating Temperature:
N/A
End of Life:
Final orders must be placed by 07/31/2027
  End of Life: Final orders must be placed by 07/31/2027

IN STOCK: 0

On Order: 400   can ship 5/25/26

Minimum Order Quantity: 50

Multiple: 50

Factory Lead-Time 4 Weeks

Price (USD)

Qty
Unit Price
50
$2.0408
250
$1.8077
500
$1.7334
1,000
$1.6871
2,500
$1.6434
5,000
$1.6186
7,500
$1.5943
10,000 +
$1.5704
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
RECOMMENDED REPLACEMENT
IC-DFR-10
IC-DFR-10
VIEW PRODUCT

Tools/3D Models

Product Guides

Product Changes

Accessories

DFK-MSTB-SS

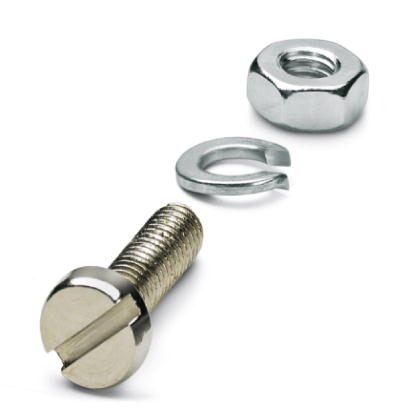

Screw set - for securing the header to the device wall - consists of an M3 x 10 screw - wi ...
