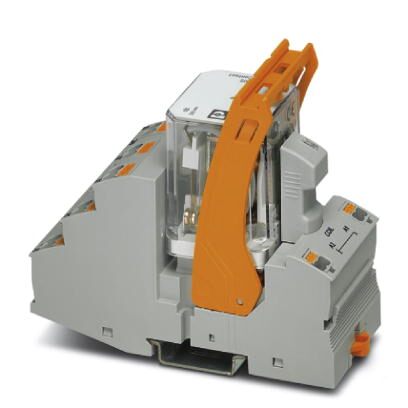

2903278 by phoenix contact
Image is representational - see manufacturer specifications
Phoenix Contact Authorized Distributor

2903278

The 2903278 is a pre-assembled relay module with a push-in connection, featuring a 3 PDT contact configuration and a nominal input voltage of 24 V DC. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 2903278 is a pre-assembled relay module that includes a relay base, power contact relay, and retaining bracket. It operates with a nominal input voltage of 24 V DC and features a convenient push-in connection. The module is equipped with three-pole double-throw (3 PDT) contacts made of AgNi, which can handle a maximum switching voltage of 440 V AC or 250 V DC. Designed for reliability, it functions within an ambient temperature range of -40 °C to 60 °C and has a typical response and release time of 20 ms. Integrated features like a yellow LED display, damping diode, and polarity protection provide operational feedback and circuit safety.

Search Keywords: 2903278

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
2903278
Alias/AKA:
2903278
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490050
COO:
PL
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
5
Coil Current:
56 mA
AC Coil Voltage:
N/A

IN STOCK: 0

On Order: 50   can ship 10/28/26
On Order: 50   can ship 11/6/26

Factory Lead-Time 6 Weeks

Price (USD)

Qty
Unit Price
1
$24.45
5 +
$23.23
Supplier's Standard Package
Log in for special pricing

Tools/3D Models

Product Guides

Product Changes

Accessories

MPS-IH-BK

Insulating sleeve - color: black

FBS-2-6

Plug-in bridge - pitch: 6.2 mm - width: 10.7 mm - number of positions: 2 - color: red

CLIPFIX-35

Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...

ZB-15:UNBEDRUCKT

Zack marker strip - Strip - white - unlabeled - can be labeled with: PLOTMARK - CMS-P1-PLO ...

MPS-IH-GY

Insulating sleeve - color: gray

FBS-2-6-BU

Plug-in bridge - pitch: 6.2 mm - width: 10.7 mm - number of positions: 2 - color: blue

STP-5-2

Terminal Block Tag Carrier STP Series - STP5-2

MPS-MT

Test plugs - with solder connection up to 1 mm² conductor cross section - color: gray

MPS-IH-BU

Insulating sleeve - color: blue

MPS-IH-RD

Insulating sleeve - color: red

FBS-2-6-GY

Plug-in bridge - pitch: 6.2 mm - width: 10.7 mm - number of positions: 2 - color: gray

ZB-5-:UNBEDRUCKT

Zack marker strip - Strip - white - unlabeled - can be labeled with: PLOTMARK - CMS-P1-PLO ...

MPS-IH-GN

Insulating sleeve - color: green

MPS-IH-YE

Insulating sleeve - color: yellow

MPS-IH-WH

Insulating Sleeve, MPS-IH WH Series | Phoenix Contact 0201663

Show 13 More
