2906032 by phoenix contact

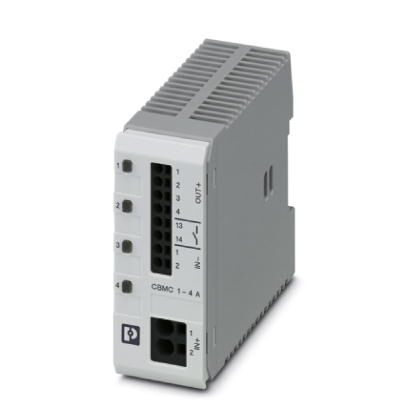

Image is representational - see manufacturer specifications
Phoenix Contact Authorized Distributor

2906032

Multi-channel electronic device circuit breaker for protecting four loads at 24 V DC in the event of overload and short circuit. With electronic locking of the set nominal currents. For installation on DIN rails. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

Multi-channel electronic device circuit breaker for protecting four loads at 24 V DC in the event of overload and short circuit. With electronic locking of the set nominal currents. For installation on DIN rails. Color Light Grey Ral 7035 Contact Type without electrical isolation Depth 98 mm Dielectric Strength max. 35 V DC (Load circuit) Efficiency > 99 % Fuse Type electronic Height 90 mm Mounting Type DIN rail: 35 mm Power Dissipation 9 W (Nominal operation) Protection Class III Type DIN rail module, one-piece Output Voltage 12 VDC, 5 VDC Width 36 mm Approvals EAC, UL Listed, cUL Listed, UL Recognized, cULus Listed Stripping Length 10 mm Primary Type Circuit Breaker

Search Keywords: 2906032

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
2906032
Alias/AKA:
2906032
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536200040
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Number of Poles:
N/A
Actuator Type:
Handle
Number of Terminals:
2
Current Rating:
10 A
Mounting:
DIN Rail
Family:
2906032

IN STOCK: 14

Can Ship immediately

Manufacturer Stock: 830   can ship 8/28/26

Factory Lead-Time 8 Weeks can ship 10/8/26

Price (USD)

Qty
Unit Price
1
$126.08
5 +
$119.78
Log in for special pricing Click for Quote Price Match Request
