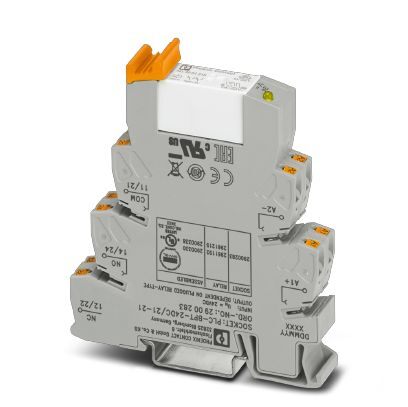

Image is representational - see mfr. specs
2912578
Phoenix ContactElectromechanical Relay 24VDC 1.33KOhm 0.05A DPDT(14x94x80)mm DIN Rail PLC Relay
RoHS Compliant
Discontinued & Replaced
Certificate of Compliance Guarantee
DESCRIPTION
Electromechanical Relay 24VDC 1.33KOhm 0.05A DPDT(14x94x80)mm DIN Rail PLC Relay
Search Keywords: 2912578
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
2912578
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
DE
ECCN:
EAR99
Supplier Standard Pack:
1
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
DPDT
Maximum Current Rating:
0.05 A
Mounting:
DIN Rail
Operating Temperature:
-40 to 60 °C
Dimension:
14 x 94 x 80 mm
Termination Style:
Spring Terminal
Coil Current:
18 mA
Contact Form:
2 Form C
Life Cycle:
Discontinued & Replaced
This product is not in stock and cannot be back-ordered
Tools/3D Models
Product Guides
Datasheet
Accessories
FBST-6-PLC-RD
The 2966236 is a red, 2-position single plug-in bridge designed for electrical connections ...
FBST-500-PLC-BU
Continuous plug-in bridge - length: 500 mm - color: blue
FBST-6-PLC-BU
Single plug-in bridge - length: 6 mm - number of positions: 2 - color: blue
FBST-500-PLC-GY
Continuous plug-in bridge - length: 500 mm - color: gray
FBST-500-PLC-RD
Continuous plug-in bridge - length: 500 mm - color: red
PLC-ESK-GY
Power terminal block - for the input of up to four potentials - for mounting on NS 35/7.5
PLC-V8L/FLK14/OUT
V8 adapter for 8 x PLC-INTERFACE (14 mm) - controller: PLC system cabling of output cards ...
FBST-8-PLC-GY
Single plug-in bridge - length: 8 mm - number of positions: 2 - color: gray
PLC-ATP-BK
Separating plate - 2 mm thick - required at the start and end of a PLC terminal strip. Fur ...
ZB10/WH-100:UNBEDRUCKT
Zack marker strip - Strip - white - unlabeled - can be labeled with: CMS-P1-PLOTTER - PLOT ...
FBST-6-PLC-GY
Single plug-in bridge - length: 6 mm - number of positions: 2 - color: gray
ZB-10:UNBEDRUCKT
Zack marker strip - Strip - white - unlabeled - can be labeled with: PLOTMARK - CMS-P1-PLO ...
PLC-V8L/FLK14/OUT/M
V8 adapter for 8 x PLC-INTERFACE (14 mm) - controller: PLC system cabling of output cards ...
NS-35/15-UNPERF-2000MM
The 1201714 is an unperforated, standard profile DIN rail made of galvanized steel, measur ...
NS-35/15-PERF-2000MM
DIN Rail - 35mmx15mm - Slotted - 2m
NS-35/15-AL-UNPERF-2000MM
DIN Rail - 35mmx15mm - Unslotted - Aluminum - 2m
FBST-14-PLC-BK
Single plug-in bridge - length: 14 mm - number of positions: 2 - color: black
