3044102 by phoenix contact

3044102

Phoenix Contact

Feed-through terminal block - nom. voltage: 1000 V - nominal current: 32 A - connection method: Screw connection - number of connections: 2 - cross section: 0.14 mm² - 6 mm² - AWG: 26 - 10 - width: 6.2 mm - height: 46.9 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15 ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

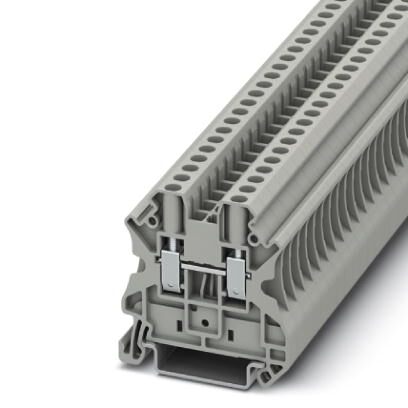

The 3044102 is a 2-position 1-level grey Feed-through Terminal Block with a polyamide insulator, the M3 screw connection and NS 35/7,5, NS 35/15 mounting. This UT 4 terminal block has large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section. The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section. It accepts 26 to 10AWG wire range. Multi-conductor connection offers maximum flexibility and wiring density Optimum screwdriver guidance through closed screw shafts Half-sine shock form 9mm Stripping length UL94V-0 Flammability rating Applications Industrial, Automation & Process Control

Search Keywords: 3044102

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
3044102
RoHS:
Yes
HTS:
8536904000
COO:
US
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Body Orientation:
Straight

IN STOCK: 16,780

Ships today, if you order in

Minimum Order: 20

Factory Lead-Time 3 Weeks

Price (USD)

Qty
Unit Price
20
$1.082
50 +
$1.030
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes

Accessories

0201676

Insulating sleeve - color: red

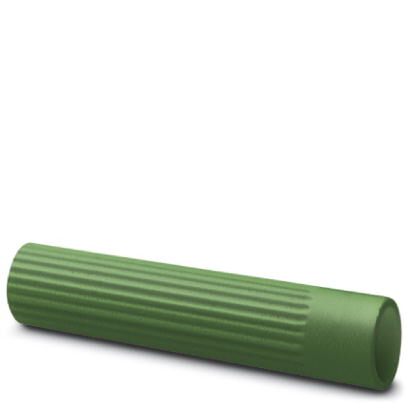

0201702

Insulating sleeve - color: green

0800886

Phoenix Contact DIN Rail End Clamp; E/NS 35 N; for 35mm DIN Rail; Screw Terminal; Gray

0801681

Phoenix Contact Montagerail, ongeboord NS 35/ 7, 5 UNPERF 2000MM - 0801681

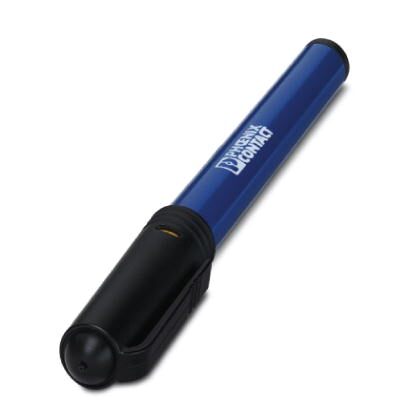

0811228

Marker pen without ink cartridge - for manual labeling of markers - labeling extremely wip ...

0201689

Insulating sleeve - color: blue

0201731

Insulating sleeve - color: black

1204119

DIN Rail - 35mmx7.5mm - Slotted - 2m

3022218

Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...

3022276

Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...

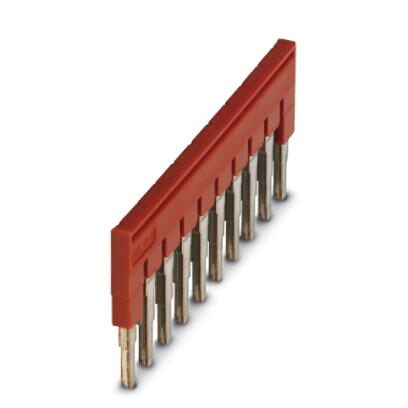

3030271

Plug-in bridge - pitch: 6.2 mm - width: 60.3 mm - number of positions: 10 - color: red

3030336

Plug-in bridge - pitch: 6.2 mm - width: 10.7 mm - number of positions: 2 - color: red

3047028

End cover - length: 47 mm - width: 2.2 mm - height: 39.8 mm - color: gray

0824992

Zack marker strip - can be ordered: Strip - white - labeled according to customer specific ...

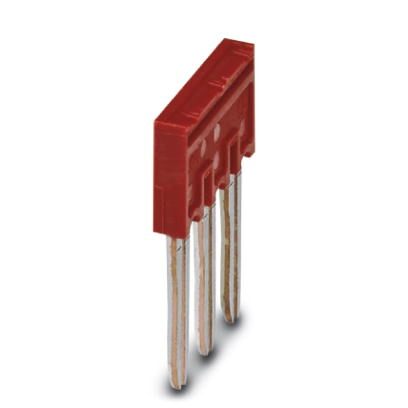

3030242

Plug-in bridge - pitch: 6.2 mm - width: 16.9 mm - number of positions: 3 - color: red

3030255

Plug-in bridge - pitch: 6.2 mm - width: 23.1 mm - number of positions: 4 - color: red

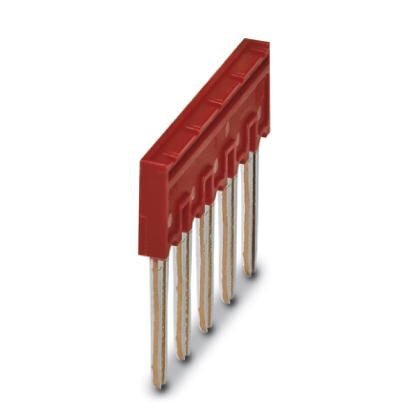

3030349

Plug-in bridge - pitch: 6.2 mm - width: 29.3 mm - number of positions: 5 - color: red

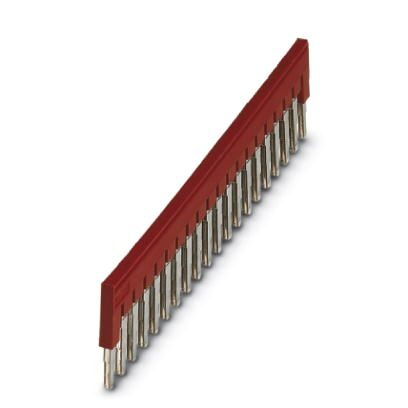

3030365

Plug-in bridge - pitch: 6.2 mm - width: 122.3 mm - number of positions: 20 - color: red

3032224

Plug-in bridge - pitch: 6.2 mm - width: 308.3 mm - number of positions: 50 - color: red

3036738

Spacer plate - length: 22.4 mm - width: 6.2 mm - height: 29 mm - number of positions: 1 - ...

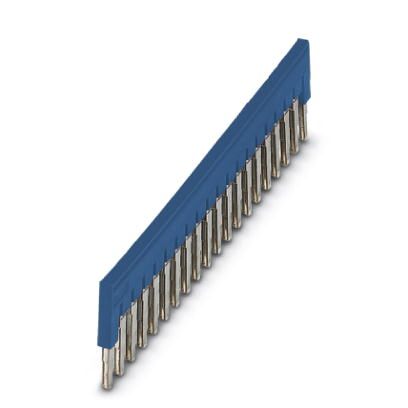

FBS 20-6 BU

Plug-in bridge - pitch: 6.2 mm - width: 122.3 mm - number of positions: 20 - color: blue

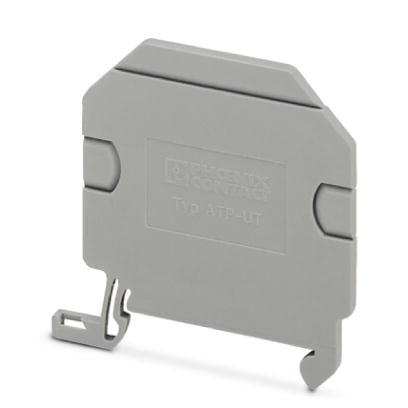

ATP-UT

Partition plate - length: 53.4 mm - width: 2.2 mm - height: 45.7 mm - color: gray

CLIPFIX 35

Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...

CLIPFIX 35-5

Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...

E/NS 35 N

End clamp - width: 9.5 mm - color: gray

FBS 2-6 BU

Plug-in bridge - pitch: 6.2 mm - width: 10.7 mm - number of positions: 2 - color: blue

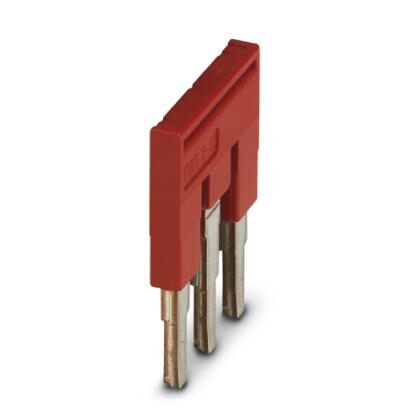

FBS 3-6

Plug-in bridge - pitch: 6.2 mm - width: 16.9 mm - number of positions: 3 - color: red

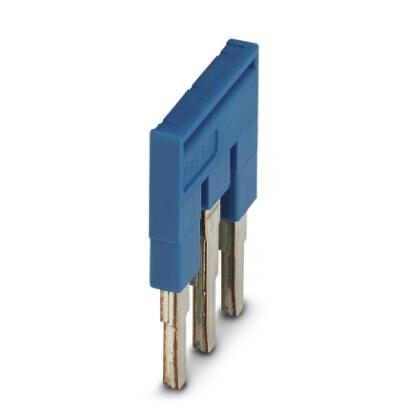

FBS 3-6 BU

Plug-in bridge - pitch: 6.2 mm - width: 16.9 mm - number of positions: 3 - color: blue

FBSR 4-6

Plug-in bridge - pitch: 6.2 mm - number of positions: 4 - color: red

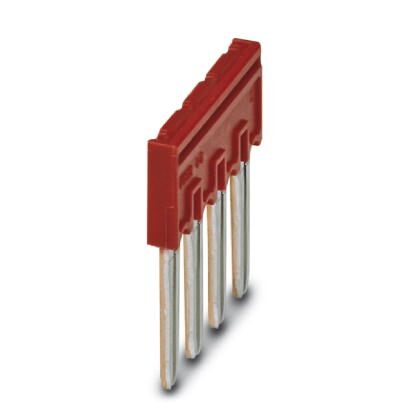

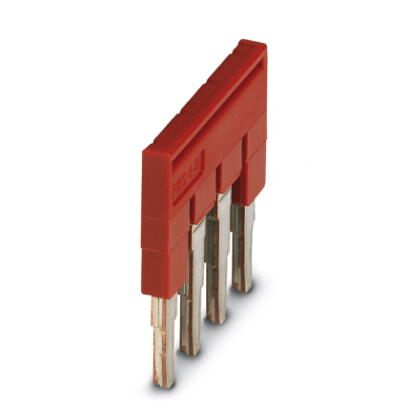

FBS 4-6

Plug-in bridge - pitch: 6.2 mm - width: 23.1 mm - number of positions: 4 - color: red

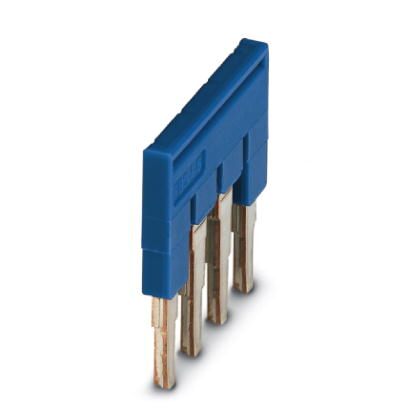

FBS 4-6 BU

Plug-in bridge - pitch: 6.2 mm - width: 23.1 mm - number of positions: 4 - color: blue

FBSR 5-6

Plug-in bridge - pitch: 6.2 mm - number of positions: 5 - color: red

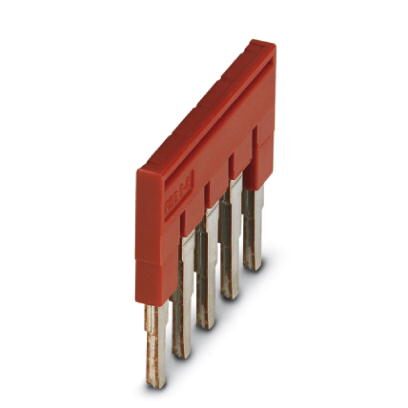

FBS 5-6

Plug-in bridge - pitch: 6.2 mm - width: 29.3 mm - number of positions: 5 - color: red

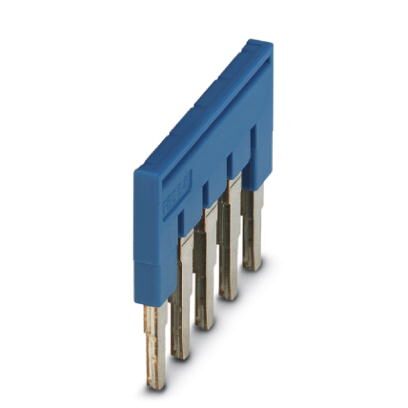

FBS 5-6 BU

Plug-in bridge - pitch: 6.2 mm - width: 29.3 mm - number of positions: 5 - color: blue

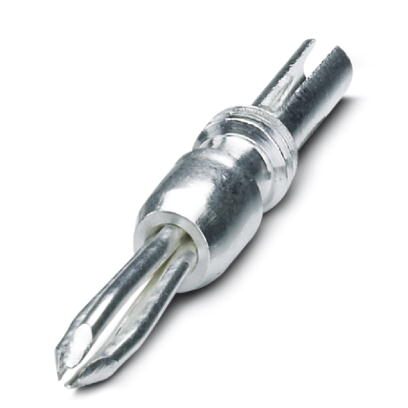

MPS-MT

Test plugs - with solder connection up to 1 mm² conductor cross section - color: gray

CLIP-PROJECT PROFESSIONAL

Multilingual software for terminal strip configuration. A marking module enables the profe ...

NS 35/15 WH PERF 2000MM

DIN rail perforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN 6071 ...

NS 35/15 ZN PERF 2000MM

DIN rail perforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN 6071 ...

NS 35/15 CU UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

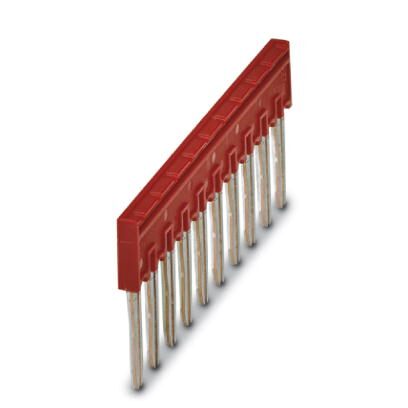

FBS 10-6

Plug-in bridge - pitch: 6.2 mm - width: 60.3 mm - number of positions: 10 - color: red

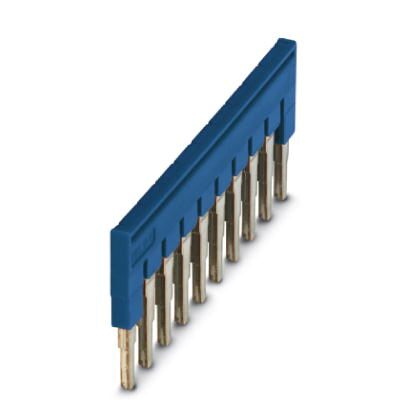

FBS 10-6 BU

Plug-in bridge - pitch: 6.2 mm - width: 60.3 mm - number of positions: 10 - color: blue

FBS 20-6

Plug-in bridge - pitch: 6.2 mm - width: 122.3 mm - number of positions: 20 - color: red

FBSR 10-6

Plug-in bridge - pitch: 6.2 mm - number of positions: 10 - color: red

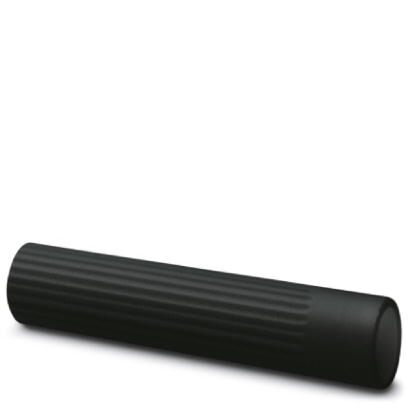

MPS-IH BK

Insulating sleeve - color: black

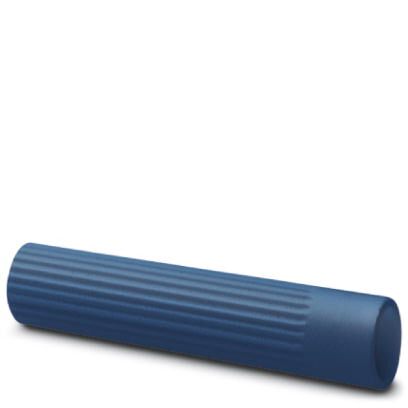

MPS-IH BU

Insulating sleeve - color: blue

MPS-IH GN

Insulating sleeve - color: green

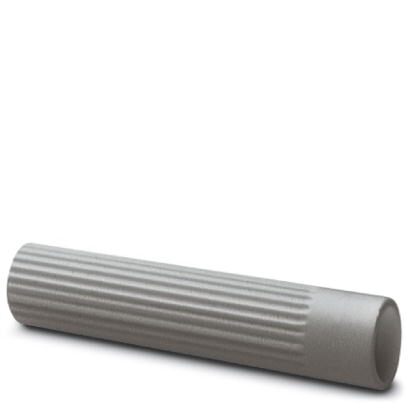

MPS-IH GY

Insulating sleeve - color: gray

MPS-IH RD

Insulating sleeve - color: red

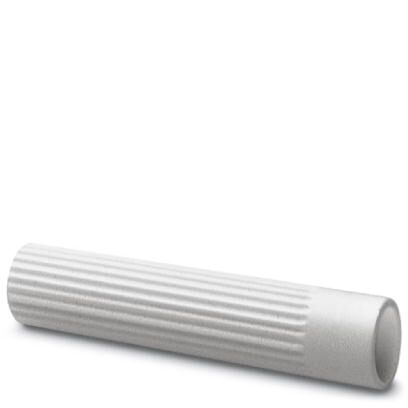

MPS-IH WH

Insulating sleeve - color: white

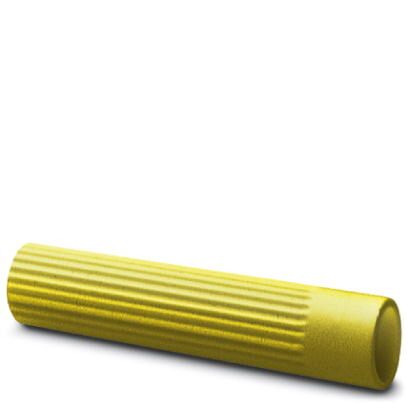

MPS-IH YE

Insulating sleeve - color: yellow

PAI-4-FIX-5/6 BN

4 mm test adapter - for terminal blocks with 5.2 mm and 6.2 mm pitch

PAI-4-FIX-5/6 BU

4 mm test adapter - for terminal blocks with 5.2 mm and 6.2 mm pitch

PAI-4-FIX-5/6 GN

4 mm test adapter - for terminal blocks with 5.2 mm and 6.2 mm pitch

PAI-4-FIX-5/6 GY

4 mm test adapter - for terminal blocks with 5.2 mm and 6.2 mm pitch

PAI-4-FIX-5/6 OG

4 mm test adapter - for terminal blocks with 5.2 mm and 6.2 mm pitch

PAI-4-FIX-5/6 RD

4 mm test adapter - for terminal blocks with 5.2 mm and 6.2 mm pitch

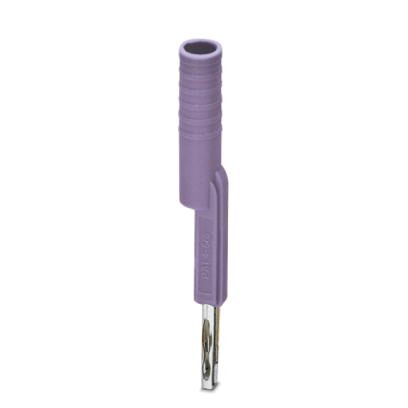

PAI-4-FIX-5/6 VT

4 mm test adapter - for terminal blocks with 5.2 mm and 6.2 mm pitch

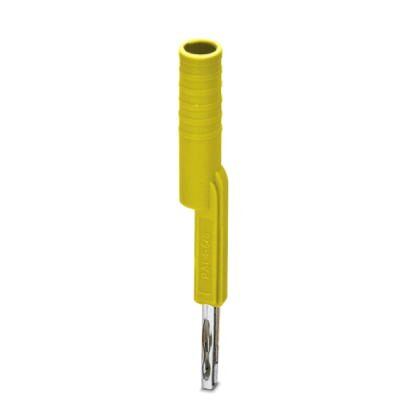

PAI-4-FIX-5/6 YE

4 mm test adapter - for terminal blocks with 5.2 mm and 6.2 mm pitch

PAI-4-N GY

4 mm test adapter - for terminal blocks with 5.2 mm - 6.2 mm and 8.2 mm pitch

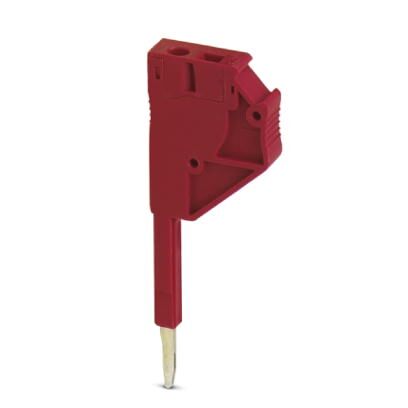

PS-6

Test plugs - color: red

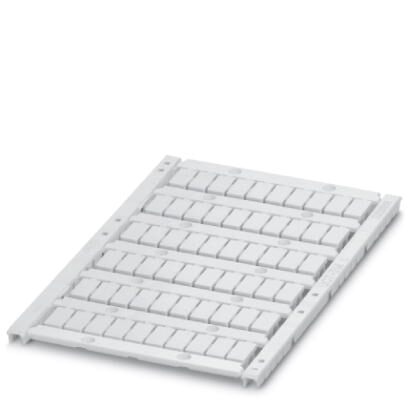

UCT-TM 6

Marker for terminal blocks - Sheet - white - unlabeled - can be labeled with: TOPMARK NEO ...

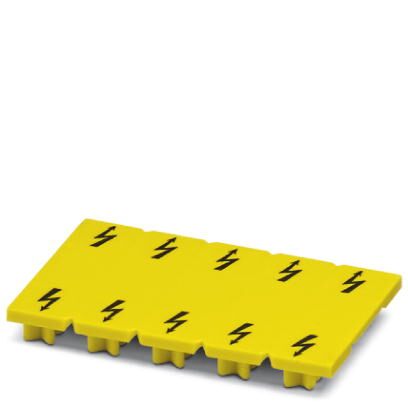

WS UT 4

Warning sign for UT terminal blocks

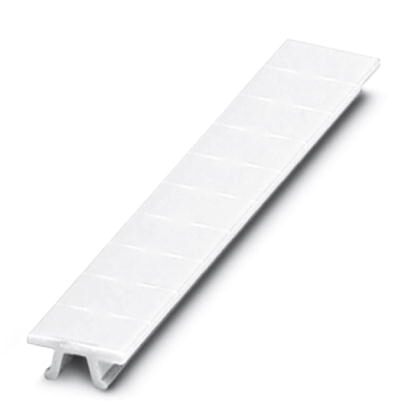

ZB 6:UNBEDRUCKT

Zack marker strip - Strip - white - unlabeled - can be labeled with: PLOTMARK - CMS-P1-PLO ...

FBS 50-6

Plug-in bridge - pitch: 6.2 mm - width: 308.3 mm - number of positions: 50 - color: red

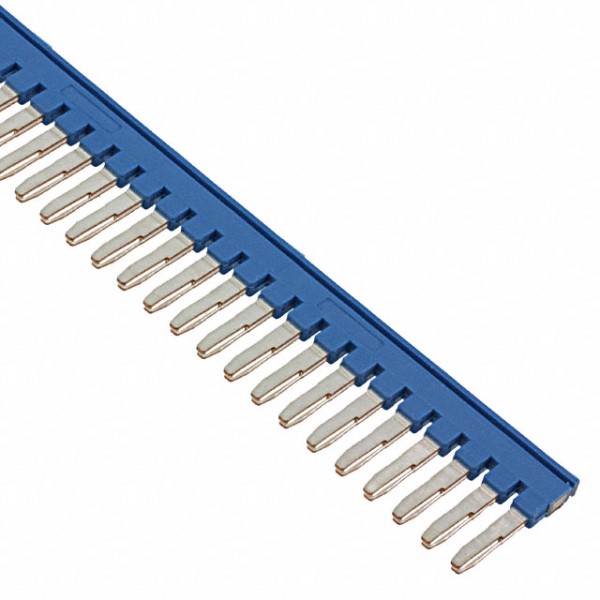

FBS 50-6 BU

Plug-in bridge - pitch: 6.2 mm - width: 308.3 mm - number of positions: 50 - color: blue

ZB 6 CUS

Zack marker strip - can be ordered: Strip - white - labeled according to customer specific ...

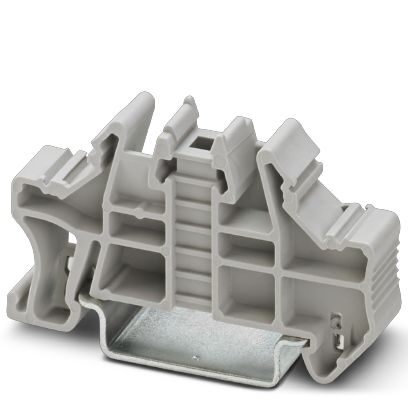

NS 35/15 CAP

DIN rail end piece - for DIN rail NS 35/15

ZB 6,LGS:GLEICHE ZAHLEN

Zack marker strip, Strip, white, labeled, can be labeled with: CMS-P1-PLOTTER, Printed hor ...

FBSR 3-6

Plug-in bridge - pitch: 6.2 mm - number of positions: 3 - color: red

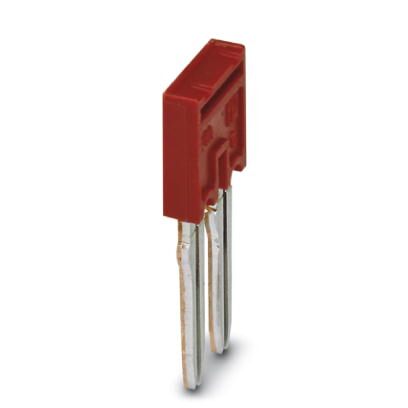

FBSR 2-6

Plug-in bridge - pitch: 6.2 mm - number of positions: 2 - color: red

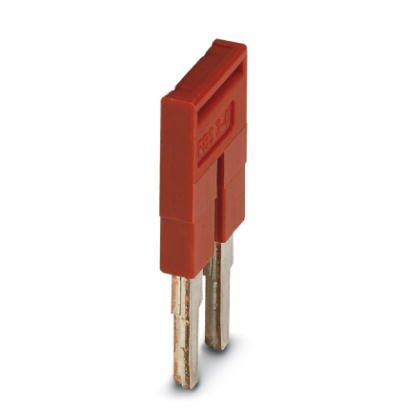

FBS 2-6

Plug-in bridge - pitch: 6.2 mm - width: 10.7 mm - number of positions: 2 - color: red

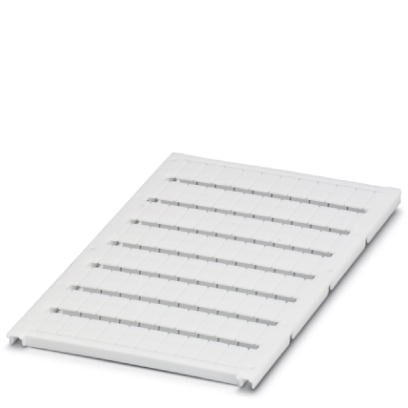

UC-TM 6

Terminal Block Marker - White - Blank - Printable - For 6.2mm W TB - 80/Sht

UC-TM 6 CUS

Marker for terminal blocks - can be ordered: by sheet - white - labeled according to custo ...

NS 35/15 PERF 2000MM

DIN rail perforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN 6071 ...

NS 35/15 UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

NS 35/15 ZN UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

NS 35/15 AL UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

PAI-4-FIX-5/6 BK

4 mm test adapter - for terminal blocks with 5.2 mm and 6.2 mm pitch

NS 35/15 WH UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...
