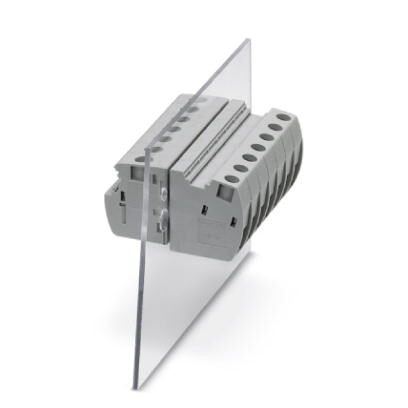

3073322 by phoenix contact
Image is representational - see mfr. specs

3073322

Phoenix Contact

Panel feed-through terminal block - connection method: Screw connection with tension sleeve - Screw connection with tension sleeve - number of positions: 1 - load current: 57 A - cross section: 0.5 mm² - 16 mm² - connection direction of the conductor to plug-in direction: 0 ° - width: 10.1 mm - color: gray ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 0707073 is a panel feed-through terminal block designed to pass electrical connections through an enclosure. It supports a maximum load current of 76 A and a nominal current of 57 A, accommodating a conductor cross-section range from 0.5 mm² to 16 mm² (AWG 20-6). The block has a nominal voltage rating of up to 400 V and a rated surge voltage of 6 kV. Constructed from gray polyamide (PA) with a UL 94 V0 flammability rating, this single-position, 10.1 mm wide block features an M4 screw thread with a tightening torque of 1.5 Nm to 1.8 Nm. This component is ideal for creating secure and reliable pass-through connections in industrial control panels and equipment housings.

Search Keywords: 3073322

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
3073322
Alias/AKA:
3073322, UW-10
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
Feed-Through Modular Terminal Block
Mounting:
Wall Mount
Gender:
N/A
Termination Method:
Screw
Pitch:
N/A
Number of Circuits:
2
Maximum Voltage Rating:
500 V
Maximum Current Rating:
57 A
Wire Size:
6-20 AWG
Operating Temperature:
N/A

IN STOCK: 0

Minimum Order Quantity: 5

Factory Lead-Time 4 Weeks

Price (USD)

Qty
Unit Price
5
$13.01
25
$11.61
50
$10.78
100
$10.34
250
$10.06
500
$9.80
1,000 +
$9.65
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Accessories

EB-2-10

Terminal Block Tools & Accessories EB 2-10 2P INSERTION BRIDGE

EB-3-10

Cross connector/jumper for modular terminal block, Number of positions: 3, Color: gray

EB-10-10

The 0203137 is a 10-position, gray insertion bridge made of copper for connecting terminal ...

UC-TMF-10

Connector Accessories Terminal Block Marker Straight Polyamide White

ZBF10:UNBEDRUCKT

Zack Marker strip - flat - Strip - white - unlabeled - can be labeled with: CMS-P1-PLOTTER ...

UC-TM-10

Marker Card Term Blk 10.2 mm 48 labels per card white UNICARD Series | Phoenix Contact 081 ...

TMT-10-R

Terminal Block & Wire Marking Products TMT ROLL = 10000 10MM TERM BLK MARKER

ZB-10:UNBEDRUCKT

Zack marker strip - Strip - white - unlabeled - can be labeled with: PLOTMARK - CMS-P1-PLO ...

UW-10-F

Flange - number of positions: 0 - color: gray
