3208943 by phoenix contact

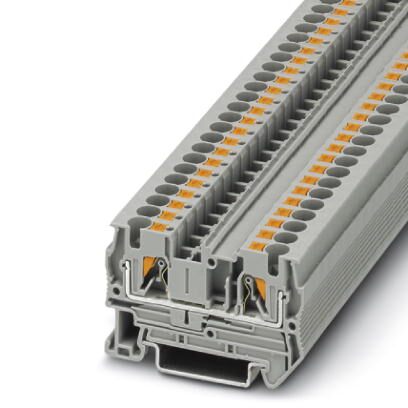

Image is representational - see manufacturer specifications
Phoenix Contact Authorized Distributor

3208943

Fuse modular terminal block - fuse type: Flat - connection method: Push-in connection - cross section: 0.2 mm²- 6 mm² - AWG: 24 - 10 - nominal current: 10 A - nom. voltage: 400 V - width: 6.2 mm - fuse type: Type F (miniature) - mounting type: NS 35/7,5 - NS 35/15 - color: black ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The PHOENIX CONTACT part 3208943 is a fuse modular terminal block designed for optimal safety and efficiency. With a flat fuse type and push-in connection method, this terminal block supports a cross-section range of 0.2 mm² to 6 mm² (AWG 24-10) and has a nominal current of 10 A. The nominal voltage is 400 V, and the block has a width of 6.2 mm. It utilizes a Type F (miniature) fuse and can be mounted on NS 35/7,5 or NS 35/15 rails. The terminal block comes in a sleek black color, making it a versatile and practical choice for various applications.

Search Keywords: 3208943

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
3208943
Alias/AKA:
3208943
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
PL
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
50
Dimension:
56mm x 6.2mm x 44 mm
Contact Plating:
N/A
Gender:
N/A
Housing Color:
Black
Body Orientation:
N/A
Contact Material:
N/A
Family:
3208943

IN STOCK: 446

Can Ship immediately

Manufacturer Stock: 9,793   can ship 11/16/26

Factory Lead-Time 6 Weeks can ship 12/14/26

Price (USD)

Qty
Unit Price
1
$9.71
50 +
$9.23
Supplier's Standard Package
Log in for special pricing
