3209578

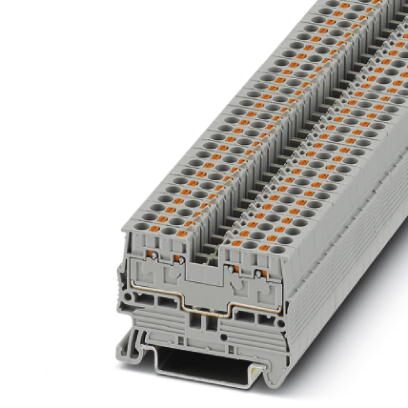

Feed-through terminal block - nom. voltage: 800 V - nominal current: 24 A - connection method: Push-in connection - number of connections: 4 - cross section: 0.14 mm² - 4 mm² - AWG: 26 - 12 - width: 5.2 mm - height: 35.3 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15 ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

Phoenix Contact Push-In Technology DIN Rail Terminal Blocks Push-In technology allows wires to be connected easier and faster than ever before. Developed by Phoenix Contact, users can quickly connect ferruled wires by directly pushing them into the terminal, without the use of tools. Stranded wires can also be connected by depressing the orange actuator, and inserting the conductor. The wires are retained with a stainless steel leg spring which tightens under tension. This allows for the rapid connection of many wires while still keeping very high pullout forces. Type Feed Through Number of Positions 4 Number of Levels 1 Terminal - Width 5.2mm Termination Style Push In, Spring Current - IEC 24A Voltage - IEC 800V Current - UL 20A Voltage - UL 600V Wire Gauge or Range - AWG 12-26 AWG Wire Gauge or Range - mm² 0.14-4mm²

Product Highlights:

Potential Applications:

Search Keywords: 3209578

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Phoenix Contact

Part No:

3209578

RoHS:

Yes

HTS:

8536904000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
