3211771 by phoenix contact

3211771

Phoenix Contact

Feed-through terminal block - nom. voltage: 800 V - nominal current: 32 A - connection method: Push-in connection - number of connections: 3 - cross section: 0.2 mm² - 6 mm² - AWG: 24 - 10 - width: 6.2 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15 ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PHOENIX CONTACT part 3211771 is a high-quality feed-through terminal block designed for various electrical applications. With a nominal voltage of 800V and nominal current of 32A, this terminal block ensures safe and reliable connections. Featuring a push-in connection method, it allows for effortless and secure wiring without the need for any additional tools. The feed-through terminal block has a total of 3 connections, accommodating a wide range of electrical setups. The cross-section capacity ranges from 0.2mm² to 6mm², making it suitable for various wire sizes. It supports AWG (American Wire Gauge) sizes from 24 to 10, allowing compatibility with different wire gauges commonly used in North America.Measuring just 6.2mm in width, this compact gray terminal block offers space-saving installation options. It can be easily mounted on NS 35/7,5 or NS 35/15 DIN rails, providing flexible integration into different electrical systems.Overall, the PHOENIX CONTACT part 3211771 is a reliable and versatile feed-through terminal block that ensures secure connections, easy installation, and compatibility with a wide range of electrical setups.

Search Keywords: 3211771

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
3211771
RoHS:
Yes
HTS:
8536904000
COO:
PL
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Body Orientation:
N/A

IN STOCK: 1,050

Can Ship immediately

Manufacturer Stock: 43,942   can ship 12/8/25

Minimum Order: 10

Factory Lead-Time 4 Weeks can ship 12/22/25

Price (CAD)

Qty
Unit Price
10
$3.494
50 +
$3.325
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

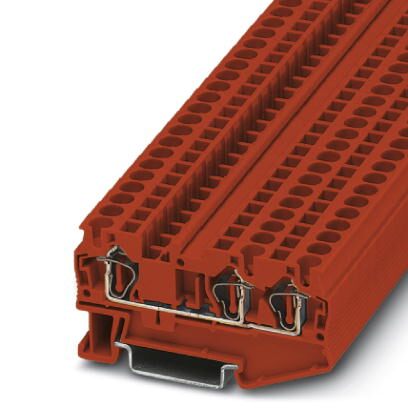

Older Equivalent
3037371
3037371
VIEW PRODUCT

Tools/3D Models

Product Guides

Product Changes
