3212120 by phoenix contact

3212120

Phoenix Contact

Feed-through terminal block - nom. voltage: 1000 V - nominal current: 57 A - connection method: Push-in connection - Push-in connection - number of connections: 2 - cross section: 0.5 mm² - 16 mm² - AWG: 20 - 6 - width: 10.2 mm - height: 49.5 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15 ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

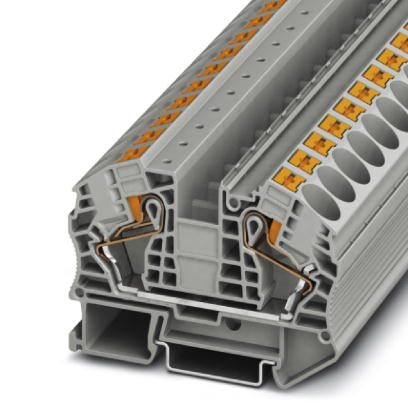

The PHOENIX CONTACT part 3212120 is a durable feed-through terminal block designed for a nominal voltage of 1000 V and a nominal current of 57 A. It features a convenient push-in connection method and offers 2 connections with a cross section ranging from 0.5 mm² to 16 mm² (AWG 20-6). The terminal block has a compact design with a width of 10.2 mm and a height of 49.5 mm, and comes in a sleek gray color. It can be easily mounted on NS 35/7,5 or NS 35/15 rails, making it ideal for various industrial applications.

Search Keywords: 3212120

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
3212120
RoHS:
Yes
HTS:
8536904000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Body Orientation:
N/A

IN STOCK: 495

Can Ship immediately

Manufacturer Stock: 185   can ship 12/5/25

Minimum Order: 10

Factory Lead-Time 11 Weeks can ship 2/5/26

Price (CAD)

Qty
Unit Price
10
$6.446
50 +
$6.125
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Accessories

CLIPFIX 35-5

Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...

E/UK 1

End clamps - for supporting the ends of double-level and three-level terminal blocks - wid ...

E/UK

End clamp - width: 9.5 mm - height: 35.3 mm - material: PA - length: 50.5 mm - Mounting on ...

FBS 5-10

Plug-in bridge - pitch: 10.2 mm - number of positions: 5 - color: red

E/NS 35 N

End clamp - width: 9.5 mm - color: gray

NS 35/15 CU UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

MPS-IH BK

Insulating sleeve - color: black

MPS-IH BU

Insulating sleeve - color: blue

MPS-IH GN

Insulating sleeve - color: green

MPS-IH GY

Insulating sleeve - color: gray

MPS-IH WH

Insulating sleeve - color: white

MPS-IH YE

Insulating sleeve - color: yellow

US-TM 100

Marker for terminal blocks - Card - white - unlabeled - can be labeled with: BLUEMARK ID C ...

CLIPFIX 35

Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...

NS 35/15 CAP

DIN rail end piece - for DIN rail NS 35/15

MPS-MT

Test plugs - with solder connection up to 1 mm² conductor cross section - color: gray

CLIP-PROJECT PROFESSIONAL

Multilingual software for terminal strip configuration. A marking module enables the profe ...

NS 35/15 WH PERF 2000MM

DIN rail perforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN 6071 ...

NS 35/15 ZN PERF 2000MM

DIN rail perforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN 6071 ...

NS 35/15 AL UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

MPS-IH RD

Insulating sleeve - color: red

PT-IL

Operating decal for the push-in Technology

UC-TM 10

Marker for terminal blocks - Sheet - white - unlabeled - can be labeled with: BLUEMARK ID ...

UC-TMF 10

Marker for terminal blocks - Sheet - white - unlabeled - can be labeled with: BLUEMARK ID ...

UCT-TM 10

Marker for terminal blocks - Sheet - white - unlabeled - can be labeled with: TOPMARK NEO ...

UCT-TMF 10

Marker for terminal blocks - Sheet - white - unlabeled - can be labeled with: TOPMARK NEO ...

ZBF10:UNBEDRUCKT

Zack Marker strip - flat - Strip - white - unlabeled - can be labeled with: CMS-P1-PLOTTER ...

UC-TM 10 CUS

Marker for terminal blocks - can be ordered: by sheet - white - labeled according to custo ...

UC-TMF 10 CUS

Marker for terminal blocks - can be ordered: by sheet - white - labeled according to custo ...

ZB 10 CUS

Zack marker strip - can be ordered: Strip - white - labeled according to customer specific ...

ZBF10 CUS

Zack Marker strip - flat - can be ordered: Strip - white - labeled according to customer s ...

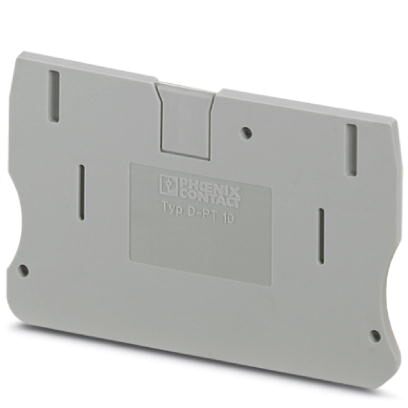

D-PT 10

End cover - length: 67.7 mm - width: 2.2 mm - height: 42.6 mm - color: gray

ZB10,QR:FORTL.ZAHLEN

Zack marker strip, Strip, white, labeled, can be labeled with: CMS-P1-PLOTTER, Printed ver ...

FBS 2-10

Plug-in bridge - pitch: 10.2 mm - number of positions: 2 - color: red

NS 35/15 PERF 2000MM

DIN rail perforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN 6071 ...

NS 35/15 UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

NS 35/15 ZN UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

ZB 10:UNBEDRUCKT

Zack marker strip - Strip - white - unlabeled - can be labeled with: PLOTMARK - CMS-P1-PLO ...

NS 35/15 WH UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...
